Machine Introduce:

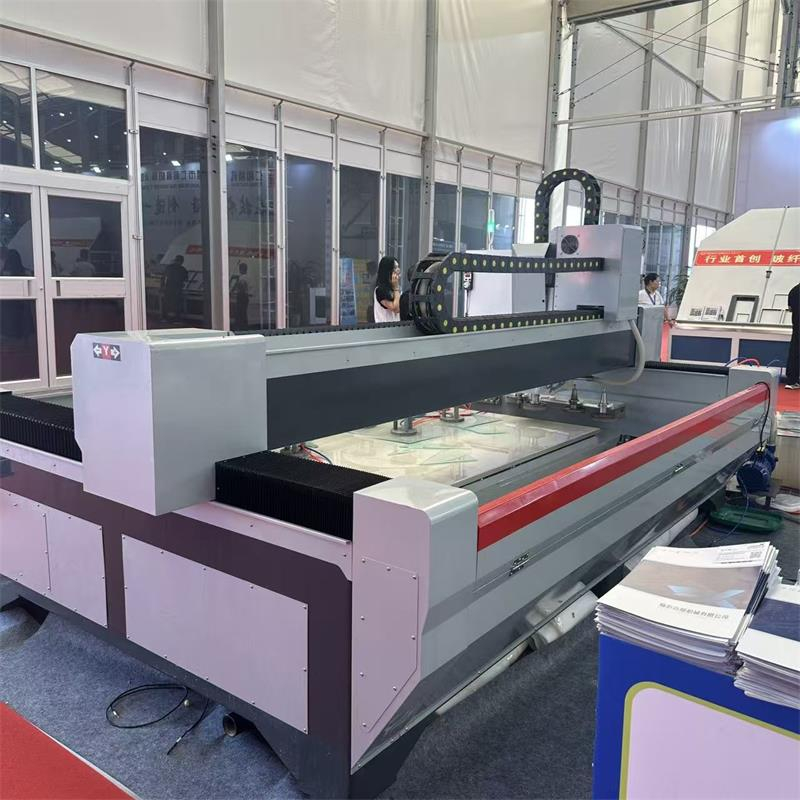

Our CNC glass processing center, also named CNC glass machining center, CNC glass work center and multifunctional CNC glass machine, is professionally developed and manufactured by China professional glass machinery factory, specially tailored for deep processing of electrical appliance panel glass.
This all-in-one CNC glass grinding machine and CNC glass polishing machine integrates core processes including glass drilling, profile milling, edge grinding, fine edging and surface polishing in one single device. It perfectly handles straight lines, special irregular shapes and custom contour machining for various electrical appliance panel glass, meeting mass production and customized processing demands of glass factory and glass manufacture enterprises.
Adopting advanced PC numerical control system and three-axis linkage driving structure, the cutter head can move freely left-right and up-down with flexible and precise positioning. The whole machine base, columns and cross beams are constructed with heavy-duty cast iron material, featuring strong rigidity and shock resistance, ensuring long-term stable and high-precision operation in factory production workshops.
Equipped with high-performance servo motor drive, imported high-precision linear guide rails, precision slider and ball screw transmission components, the equipment runs smoothly with low error, fully satisfies the strict dimensional tolerance and surface finish requirements of electrical appliance panel glass.
Adhering to the manufacturing concept of Made in China high cost-performance equipment, this CNC glass processing center integrates multiple functions with simplified mechanical structure and humanized simple operation. It is the ideal professional processing equipment for electrical appliance glass supporting factories, glass deep processing manufacturers and related glass production enterprises.
· 3-axis linkage CNC control, high precision for electrical panel glass processing
· Full automatic CNC glass work center for one-stop drilling, milling, edging and polishing
· Support rough grinding, fine edging and high-gloss polishing for appliance glass
· Professional glass drilling and special-shaped milling for various electrical panel sizes
· Equipped with automatic tool changing, spindle cooling and central lubrication system
· Intelligent automatic tool calibration, stable and consistent processing effect
· Compact space-saving design, suitable for glass factory workshop layout
· Ultra-robust structural design, durable for long-time industrial continuous production
· Widely applicable for glass door, shower room glass, automotive glass and electrical appliance panel glass manufacturing.
Technical Parameter and configuration list
MODEL No. | ZXX-C2010 |
Machine Bed | Heavy heat treatment bed |
Internal of machine structure | Half Cover/Waterproof design |
Control System | QIXIN (ZNXU Special designed) |
Main Spindle | DIAM θ150 /100 Cooling Method: Water Cooling RPM:15000 |
Machine Size | 3700*2150*2300MM |
N.W（kg) | 2600KG |
Table Size | 2000*1000MM |
Work Travel | 2000*1000*380MM |
Mini grinding size | 100*100mm |
Max grinding size ( wheel φ150） | 2000*900MM |
Max cutting size | 2000*1000MM |
Speed | Grinder <12M/MIN, Polish <6M/MIN |
Cutting Speed | 300-500mm/min |
Table Material | Aluminium Plate （Before milling 25mm) |
Work table load weiht | 450kg |
Position Accuracy | ±0.02mm |
Repeated position accuracy | ±0.1mm |
Servo motor | DELTA |
TOTAL（KW) | 24kw |
AUTOMATIC TOOL CHANGE
This machining center comes standard with an automatic tool magazine and an ATC (Automatic Tool Changer) system, capable of stably storing multiple tool specifications and supporting multi-process composite machining such as milling, cutting, grinding, chamfering, and polishing. The machine tool intelligently manages tool numbers and positions through a CNC system, ensuring fast and precise tool changes without any manual intervention.
DOUBLE STATION PROCESSING
Two glass can be loaded at the same time. By this feature after the first glass processing the machine automatically reposition itself for second glass. Thanks to this feature time losses caused by glass loading is prevented and serial glass processing increased in production.
MULTIFUNCTION PROCESSING
With its multifunction glass processing feature our machine can do glass edging, milling, drilling and polishing automatically in one cycle for flat and shaped glasses. This feature is very useful for manufacturing of glass doors, furniture glasses, shower glass doors etc.
PROPORTIONAL HANDWHEEL
With its hand held unit that we have developed for our glass processing center the operator is able to use the machine through hand held unit easily with maximum comfort. Proportional and ergonomically designed handwheel is used for precise, fast reset and setup purposes.
SUCTION CUPS SUPPORT SYSTEM
Holding the glass in glass processing is one of the important case and by knowing that very well we have designed strong suctions cups which has long life usage. With our strong suction cups technology we offer you maximum safety and the easiest way of glass processing with our glass processing center.
REMOTE ACCESS SYSTEM
Remote technical assistance system based on a set of software tools that allows authorized staff of our after sales services to manage maintenance or assistance tasks anywhere in the world quickly and efficiently. Access via the Internet is always done with the prior consent of the customer.
