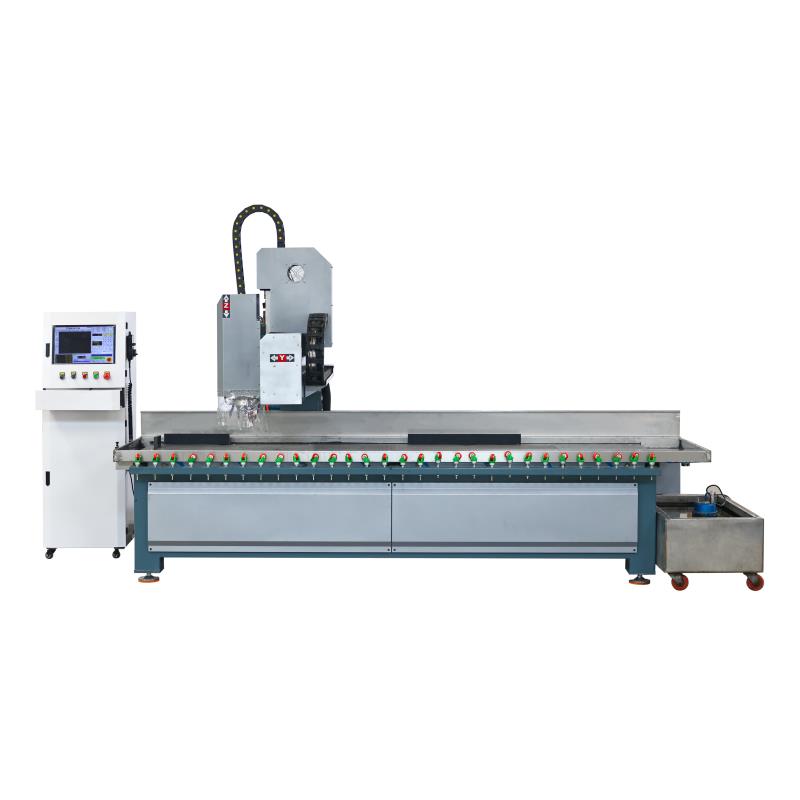

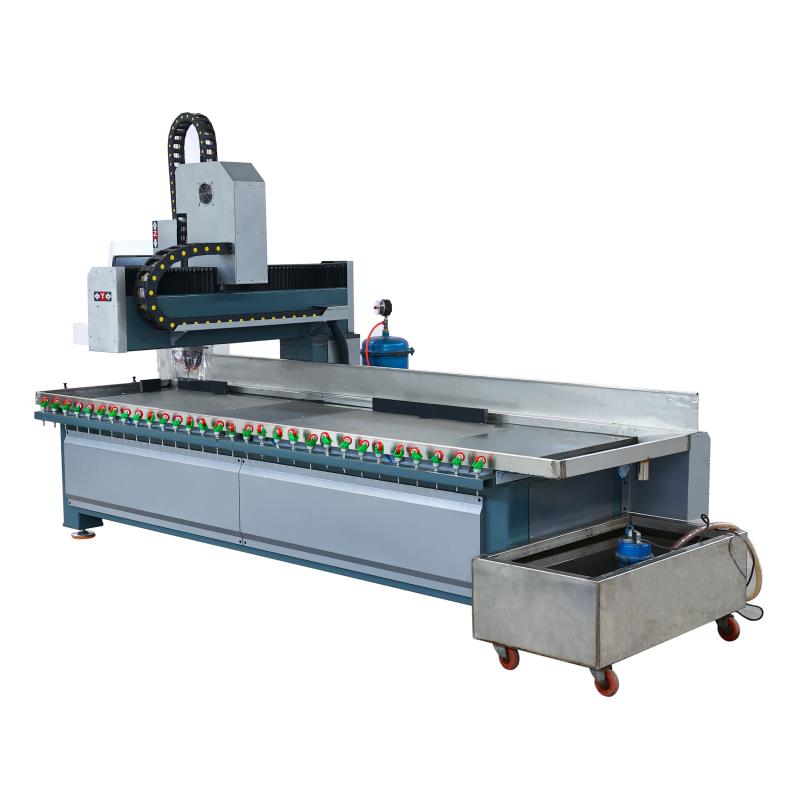

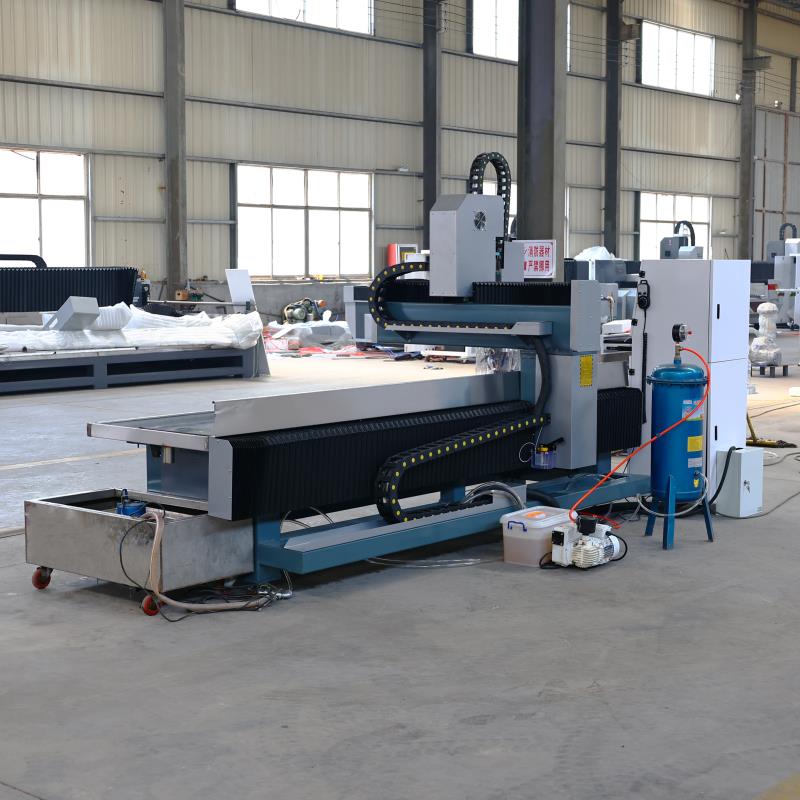

This is our newly developed professional machine for glass and slab milling. It adopts a cantilever 3-axis and 3-wheel drive structure.
The machine bed is welded with high-quality steel and quenched for solid stability. Equipped with Class H precision linear guides and full servo drive, the machine maintains high processing accuracy and stable operation.
It is fitted with a high-power high-speed spindle motor, featuring fast milling speed, slight radial runout and high machining precision. The semi-shielded waterproof structure ensures reliable waterproof performance. The three-side open work platform makes glass loading and unloading easy, greatly lowering operation difficulty and labor intensity.
· Mainly applied to glass hole milling and notch cutting.
· Cost-effective with low investment cost and simple operation.
· Open structure with no limit on glass processing size.
· Perfect for small glass processing factories and tempering plants with limited budget for dedicated hole and notch processing equipment.

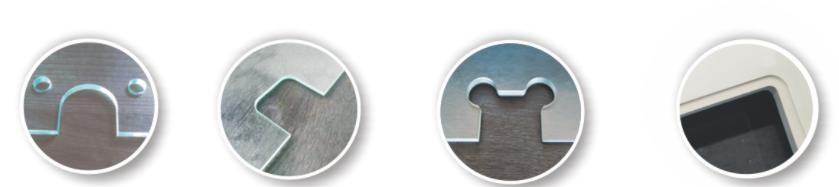

· Widely used for sliding door glass lock holes, shower room glass hinge notches, cabinet glass countertop sink holes and other similar milling processing.
Main Techincal Parameter：
Machine Size：4470X1900X2000mmmm
PKG SIZE: 3550*2000*2200MM
Glass can be putted within the table ( no water leaking): 1000*3000 mm
Glass can be processed within the table ( no water leaking): 1000*2500 mm
Process glass size: no limited ( three sides opened table, no limited)
Resin Table Size: 1100*3050mm
Actual size of motor moving: 1000*2500mm
Stroke X Axis: 1000mm
Stroke Y Axis: 2200mm
Stroke Z Axis: 200mm
Main Spindle (JST) : 7.5kw
RPM OF Main spindle: 24000RPM/MIN
SERVO Motor -WEIDE : 0.75*3
Total Power：13.6kw, 3 phase
Total Weight：1500kg
Speed of Milling：0-1 m/min (1cutouts/min)
Accuracy: ±0.2mm
Thickness: 3-19mm
Volt. / HZ：~380v/50hz, 3 phase ( can be different by adding the transformer)
Water proof design：half-shielded waterproof structure
Let me tell you why choose it:
For slides door customers , if they want to make the cutouts like this, 1st, by hand, broken easier when tempering, and it looks very rough and very dangerous. 2nd waterjet machine and cnc machinning center,cost is very expensive!!!
Therefore, the model ZXX-E1025 will be the best choice for the slides door customers!!!
