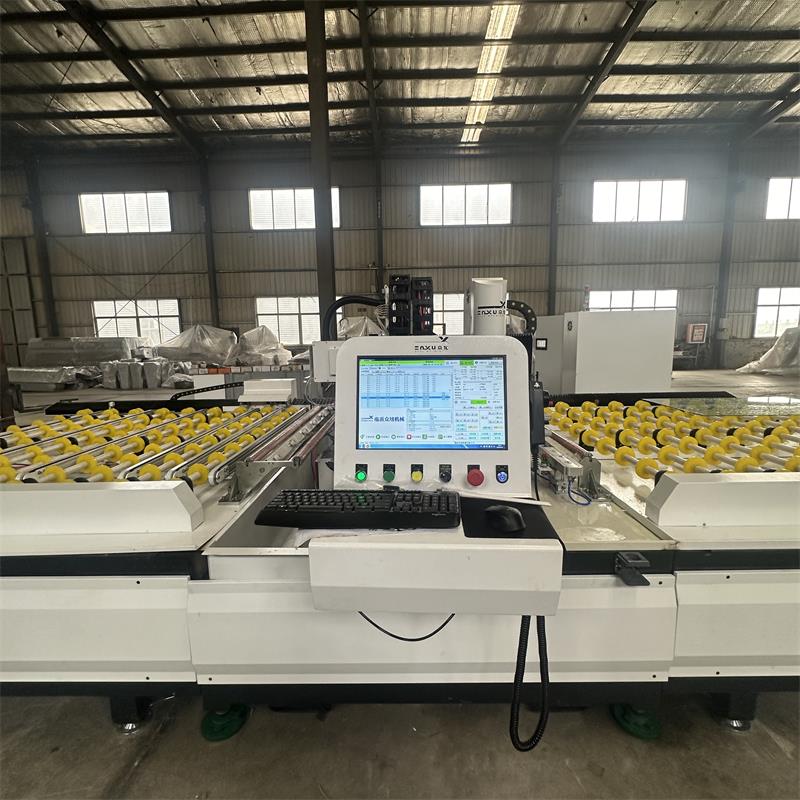

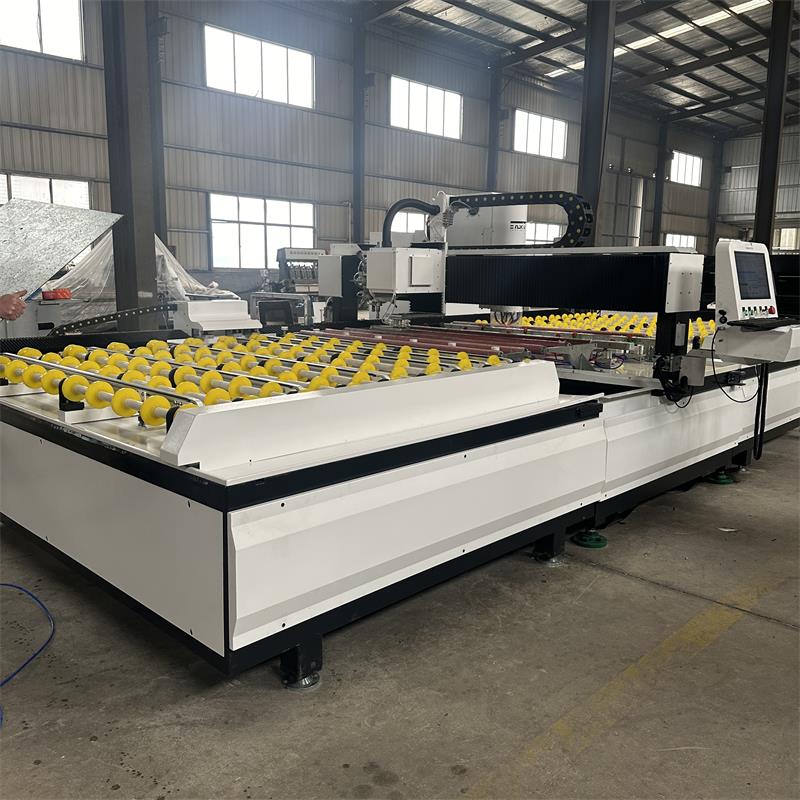

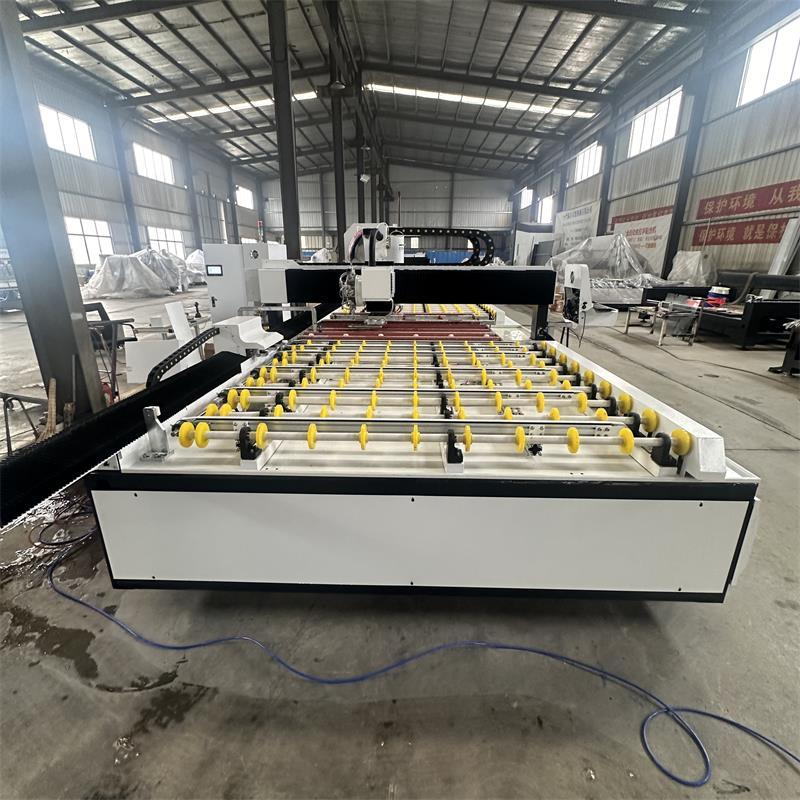

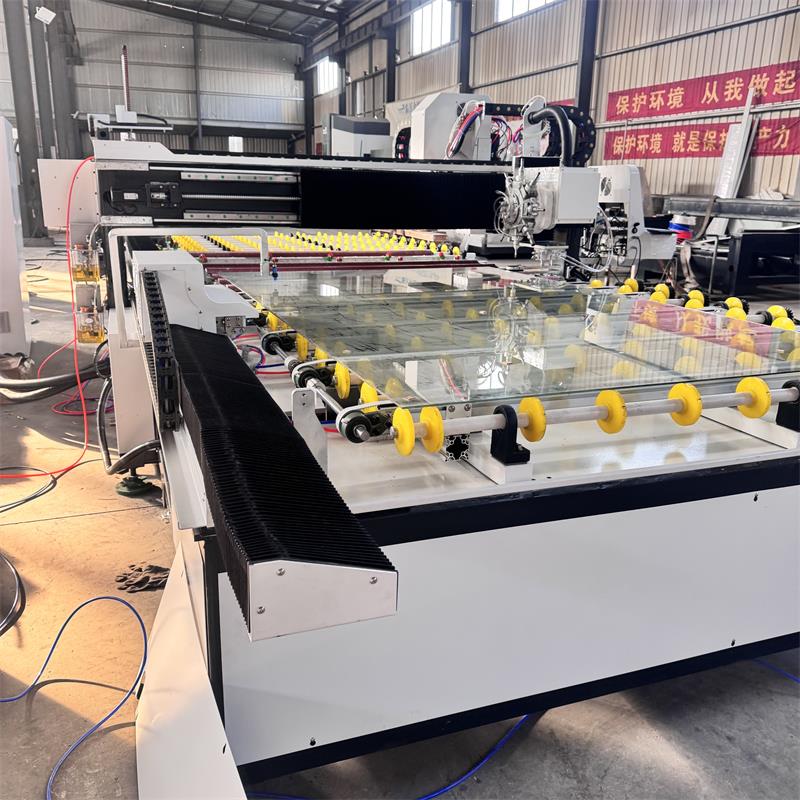

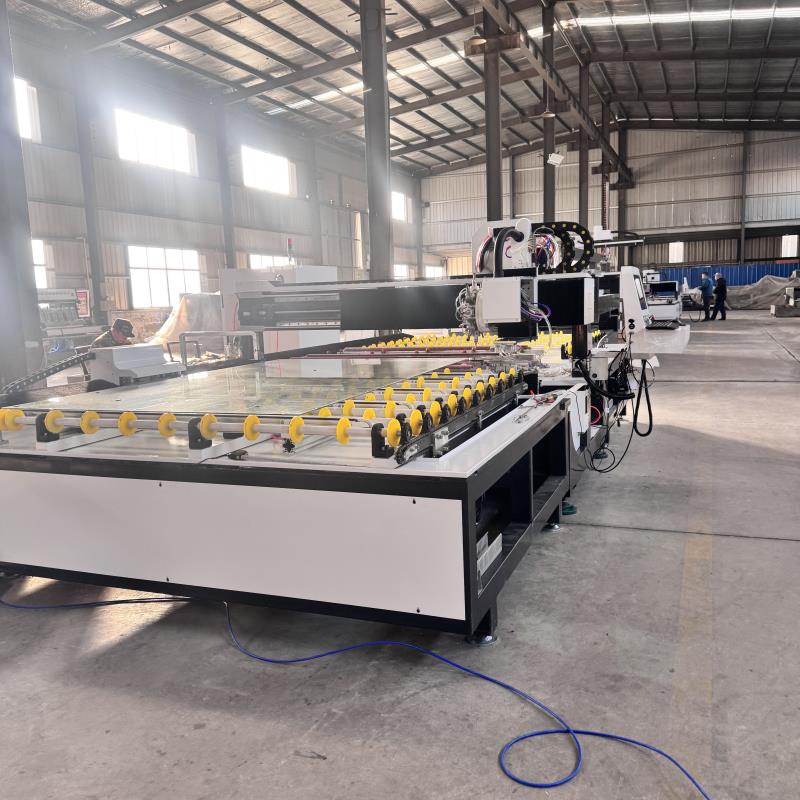

1. High-Efficiency Precision Drilling: The newly added automatic tool setting function enables rapid tool setting and automatic recognition of circles in the drawing. Equipped with an automatic tool setting device, it can quickly and accurately drill holes with diameters from 10mm to 50mm, with a processing speed of 1 hole per 20 seconds . The adoption of high-precision ball screws and linear guides ensures positioning accuracy within ±0.3mm for workpieces up to 2500mm .
2. Different shape of Holes Machining: Beyond standard holes, it excels in processing large holes (over 50mm in diameter) and special-shaped holes such as triangular and oval ones and so one. It is also specialized in drilling functional holes like:
◦ ◦Shower room "Mickey cuts" glass clamps holes
◦ ◦Sliding door glass U-shaped lock holes
◦ ◦Floor spring store door lock holes like L etc
◦ All of different shape cutouts processing
This machine is particularly suitable for processing:
•Canopy glass
•Automotive glass
•Agricultural machinery glass
•Shower room glass
•Sliding door glass
• and also various other shapes of glass that require both internal and outernal milling or notching.
With its robust spindle power and stable machine bed structure , it maintains consistent performance even in high-volume production. The CNC control system allows easy parameter adjustment for different glass thicknesses and hole specifications , significantly improving production efficiency and yield.
1.3. Technical Parameter
XY axis effective moving range | X axis | 0--4000 | [mm] |
Y axis Milling Drilling | 0-2000 0-1800 | [mm] | |
Max moving speed | X axis Y axis | 0-35 0-20 | m m |
RPM OF MAIN SPINDLE OF MILLING PART | 5000-24000 | r/min | |
RPM OF MAIN SPINDLE OF DRILLING PART | 1000-6000 | r/min | |
PROCESSING SPEED | DRILLING（Based on the cutter specifications） MILLING（Based on the cutter specifications） | 0-4 0-15 | mm/s mm/s |
Hole spacing accuracy | X Y | ±0.3mm | mm |
diagonal precision | ±0.3mm | mm | |
Milling precision | ±0.3mm | mm |
