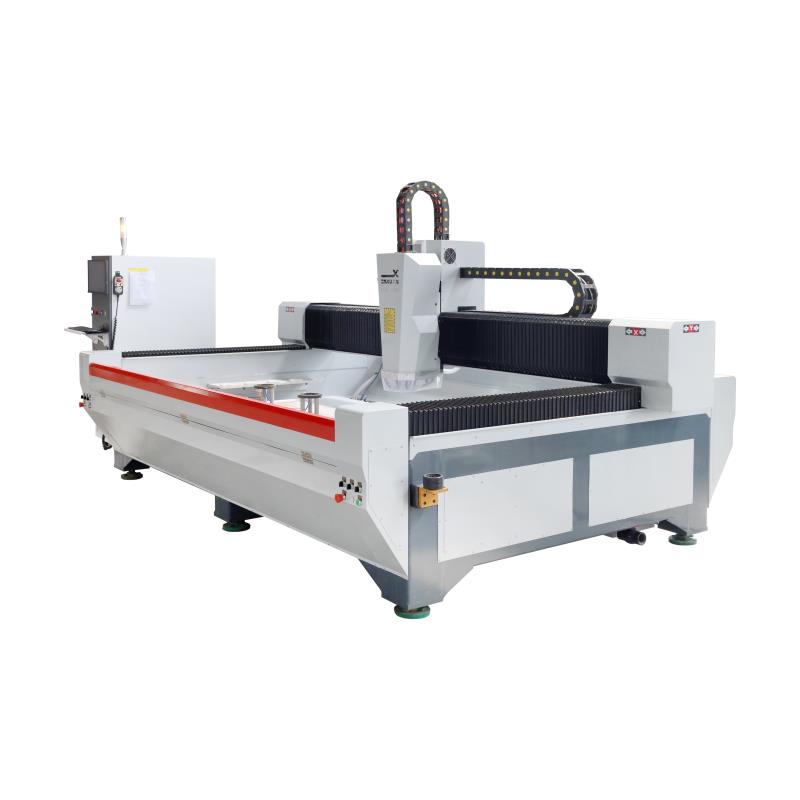

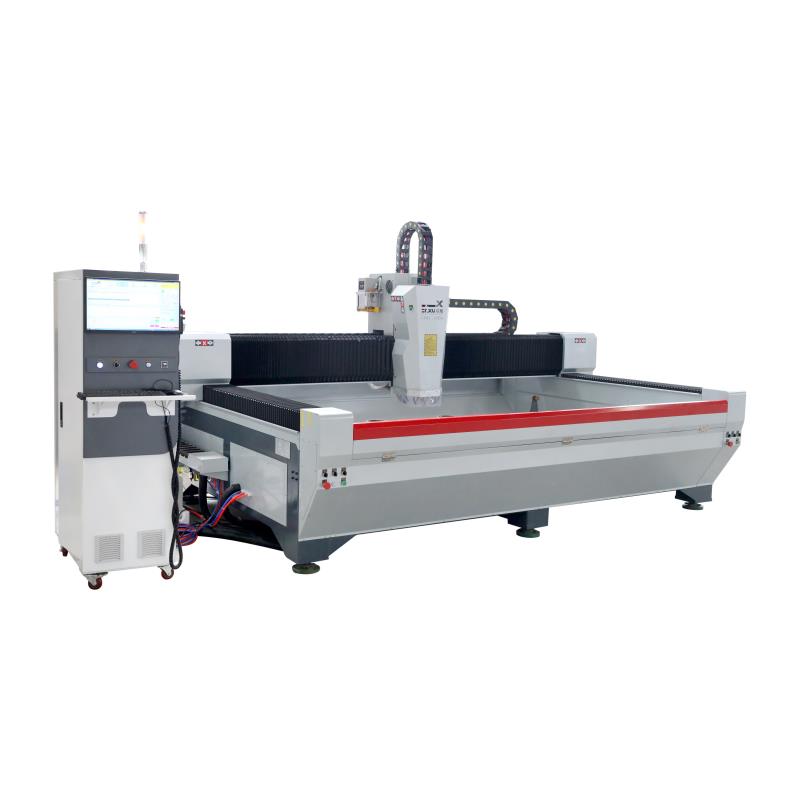

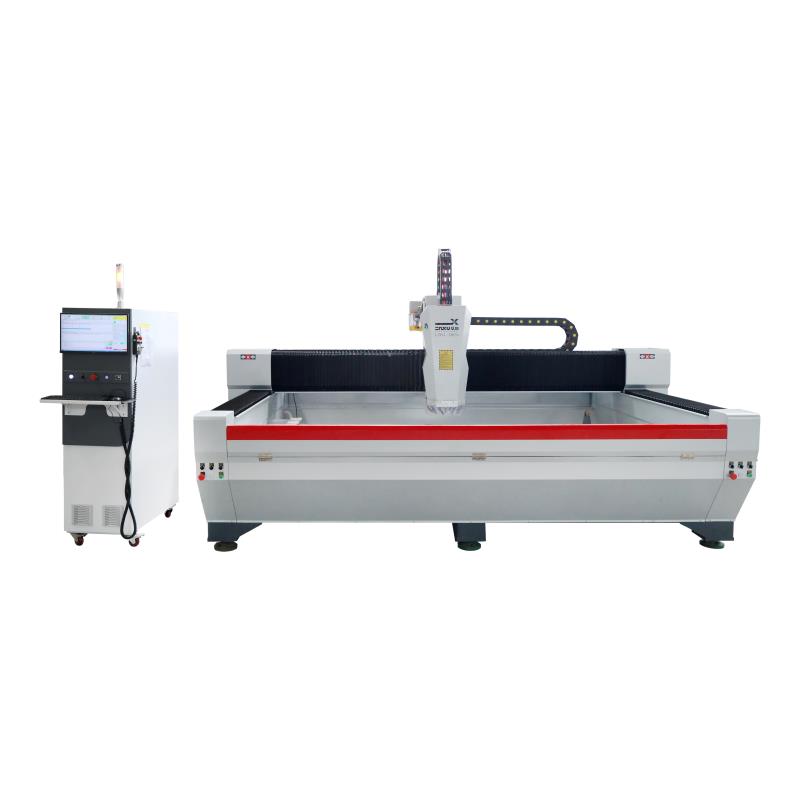

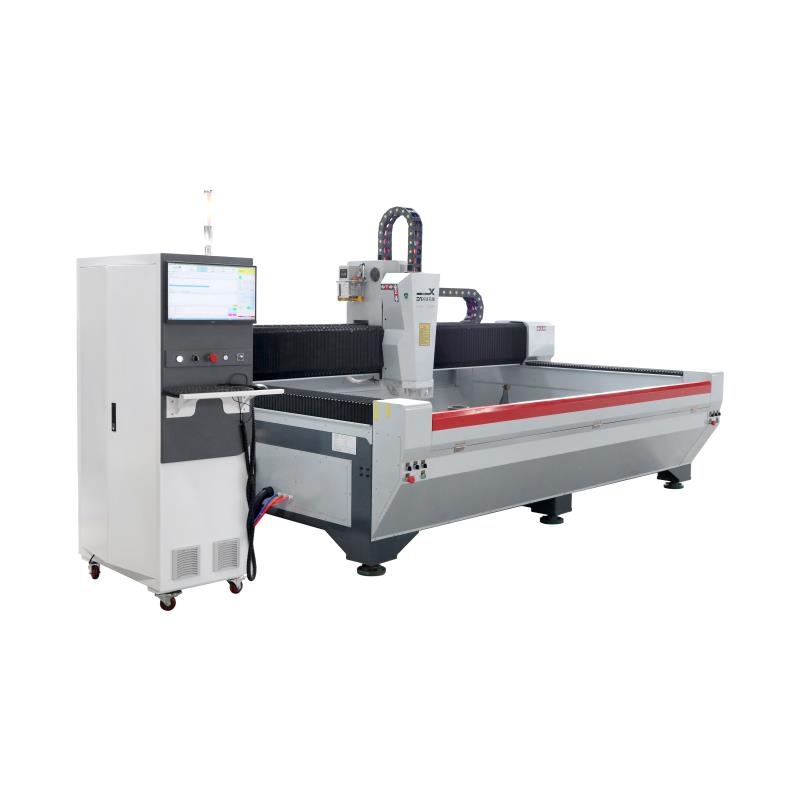

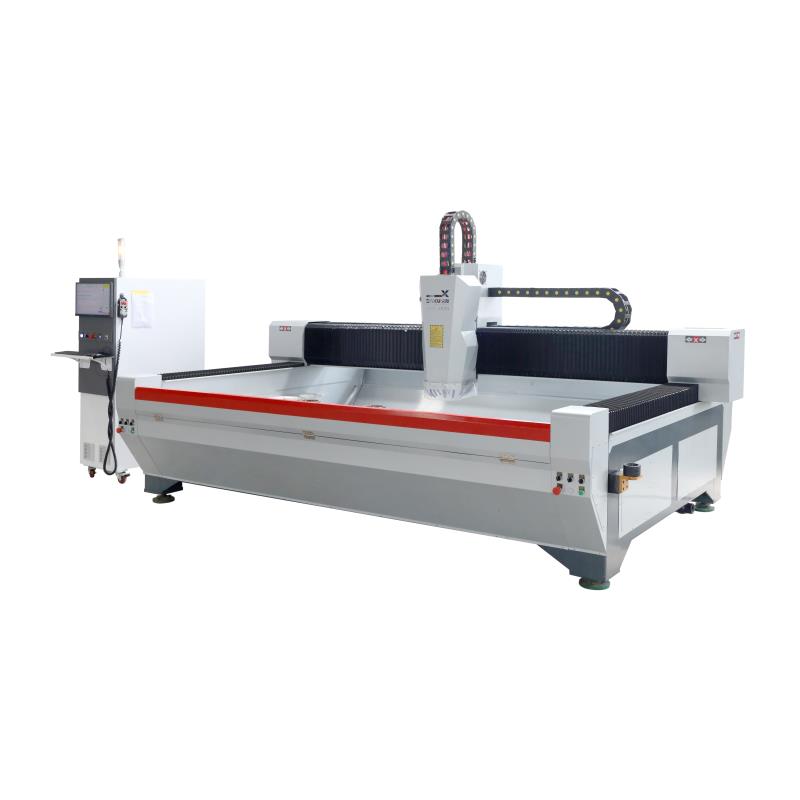

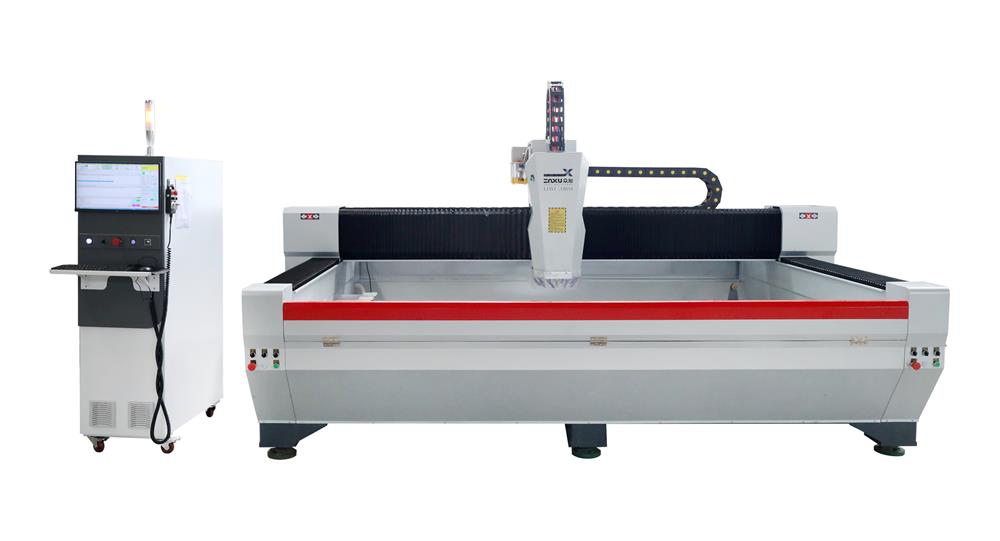

ZXX-C4020 CNC Glass Machining Center

As a leading glass factory and glass manufacture equipment supplier, we specialize in high-precision CNC glass processing center, CNC glass machining center, CNC glass work center and all-in-one CNC glass machine R&D and production. Our professional glass processing machine, integrated with high-efficiencyCNC glass grinding machine and CNC glass polishing machine, is engineered specifically for automotive glass processing, addressing the critical demands of ultra-thin (2mm) material, high precision and strict quality control in automotive glass manufacturing.

Designed exclusively for automotive glass deep processing, this CNC glass processing center excels in edging and drilling of 2mm ultra-thin automotive glass, applicable to windshield, side window, rear window and sunroof glass. To meet the automotive industry’s rigorous standards for flatness, hole position accuracy and edge finish, the equipment is equipped with advanced CNC control technology and precision transmission parts, boasting positioning accuracy of ±0.008mm and repeat positioning accuracy within ±0.003mm. This ensures precise positioning of drilled holes (for brackets and sensors) and burr-free, smooth and uniform edges after grinding, fully complying with the strict quality norms of the automotive glass manufacture sector.

Given the fragility of 2mm ultra-thin automotive glass, the CNC glass work center is equipped with a PROPORTIONAL HANDWHEEL for convenient and accurate operation. Our self-developed ergonomic handheld controller offers maximum operational comfort, while the proportional handwheel enables quick and precise reset, parameter adjustment and position calibration—effectively minimizing operational errors and protecting the integrity of ultra-thin automotive glass during processing.

Safety and stability are paramount in ultra-thin automotive glass processing. This CNC glass machine features a custom-designed high-performance SUCTION CUPS SUPPORT SYSTEM. Soft, high-seal vacuum suction cups securely hold 2mm ultra-thin automotive glass without causing scratches, indentations or breakage. During high-speed edging and drilling, the system prevents glass displacement, ensuring processing safety and maintaining glass flatness—essential for meeting the high-quality requirements of automotive glass production.

For enhanced production efficiency, the equipment is equipped with DOUBLE STATION PROCESSING, allowing simultaneous loading of two pieces of 2mm ultra-thin automotive glass. Upon completion of the first piece, the machine automatically repositions to process the second, eliminating idle time from manual loading and significantly boosting batch production efficiency for glass factory operations. Additionally, 3-axis linkage control and an automatic tool changing system enable one-stop edging and drilling, with a feeding speed of up to 18m/min—reducing processing time by 40%-60% compared to traditional equipment and enabling efficient, continuous mass production.

With robust MULTIFUNCTION PROCESSING capabilities, this CNC glass processing center not only delivers high-precision edging and drilling for 2mm ultra-thin automotive glass but also adapts to various shapes and specifications of automotive glass. It fully meets the diverse processing needs ofglass manufacture enterprises in the automotive glass industry, realizing multi-purpose functionality with a single machine to reduce equipment investment costs.

To ensure uninterrupted operation and minimize downtime for glass factory, the machine is equipped with a REMOTE ACCESS SYSTEM. Based on professional software tools, authorized after-sales personnel can provide rapid technical support, fault diagnosis and maintenance services worldwide via the Internet—all operations require prior customer consent, offering comprehensive protection for continuous automotive glass production.

The machine’s base, columns and beams are crafted from high-quality heavy cast iron, treated with quenching and tempering to enhance structural rigidity and vibration resistance. This effectively eliminates vibration during high-speed processing, further guaranteeing the precision of 2mm ultra-thin automotive glass processing. As a high-precision, efficient, stable and user-friendly CNC glass processing center, it is the ideal core equipment for glass manufacture enterprises engaged in automotive glass processing, helping reduce production costs, improve product quality and strengthen market competitiveness.

 Technical Parameter
