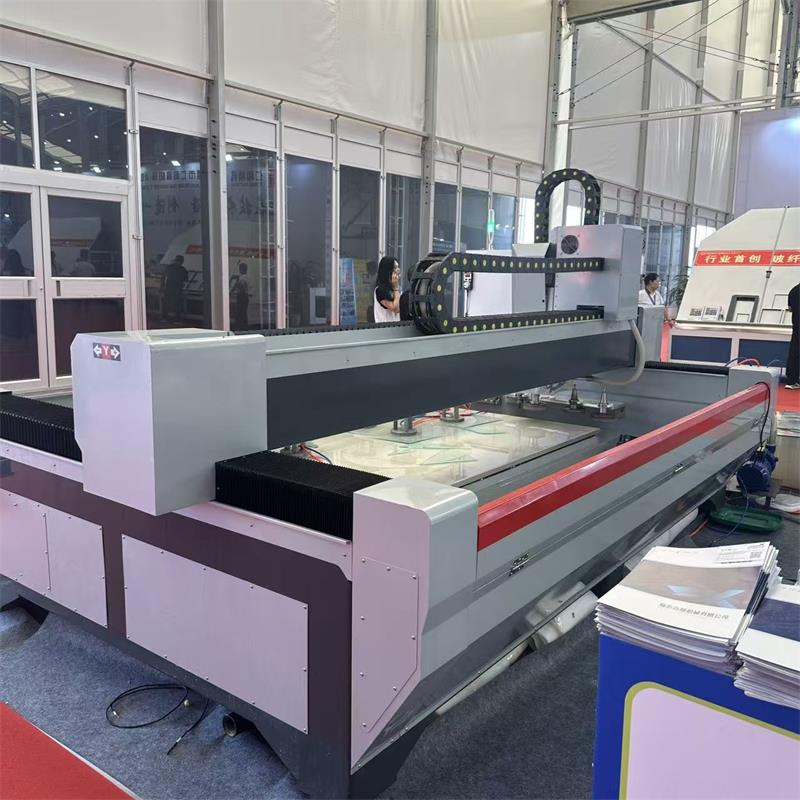

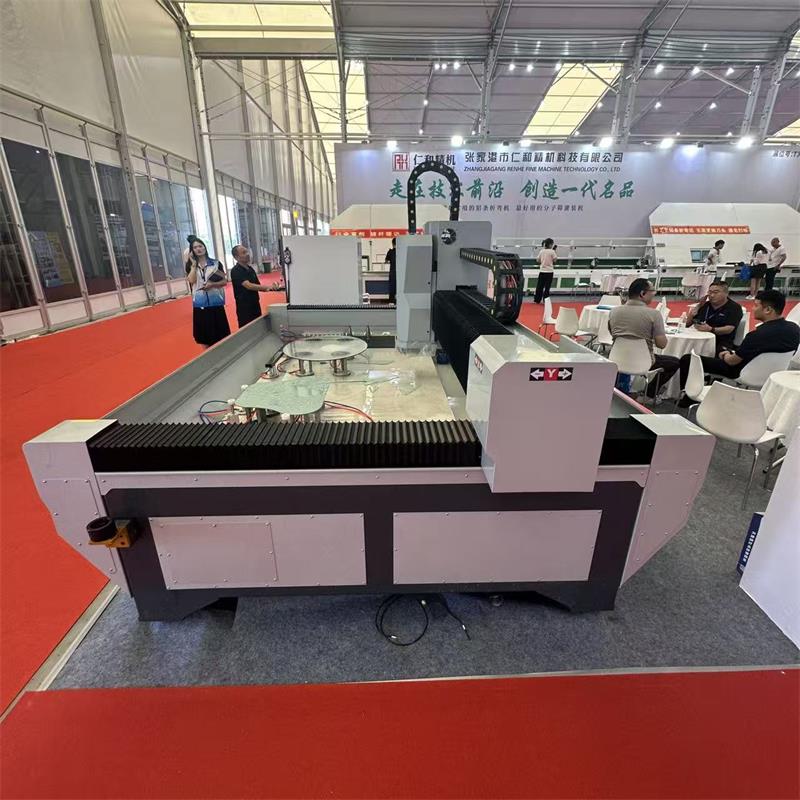

Machine Introduce:

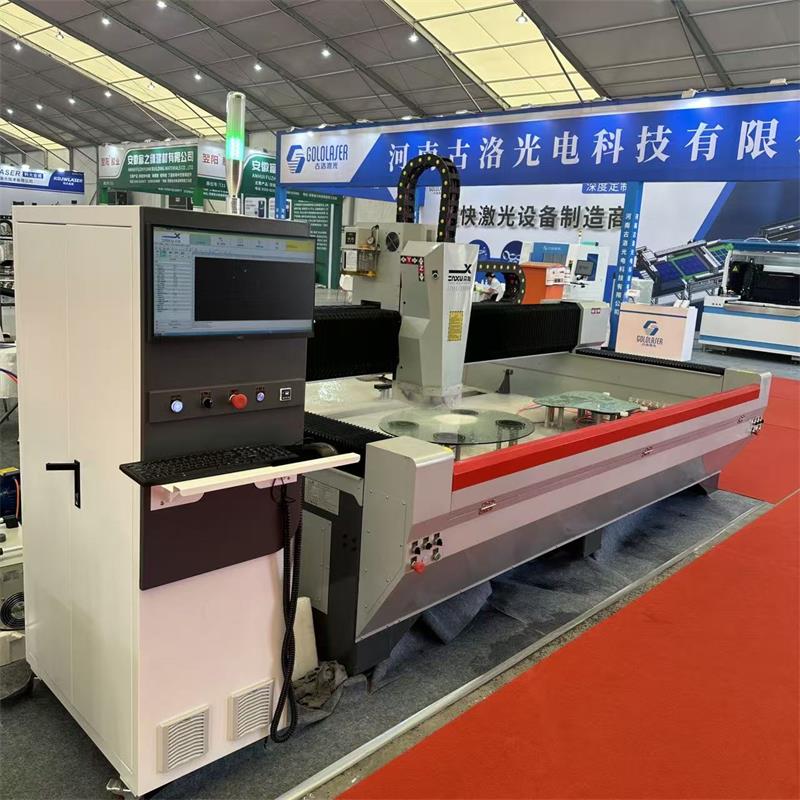

As a professional glass factory and glass manufacture equipment supplier, we specialize in producing high-precision CNC glass processing center, CNC glass machining center, CNC glass work center and multifunctional CNC glass machine, dedicated to the precise processing of various furniture glass. Our glass processing machine, including professional CNC glass grinding machine and CNC glass polishing machine, is specially engineered to handle all kinds of furniture glass with different shapes and processing needs, fully meeting the production requirements of glass factory and glass manufacture enterprises.
Our CNC glass processing center is capable of processing various irregularly shaped furniture glass, such as circular, elliptical, pentagonal, rhombus and other custom special-shaped glass, as well as common furniture glass products including glass table tops, cabinet glass, furniture door glass and glass partitions. It integrates multiple core processing functions in one, including edging, profile milling, drilling, notch cutting and polishing, realizing one-stop processing of furniture glass without the need for multiple equipment, greatly improving production efficiency for glass manufacture plants.
Equipped with advanced PC-based numerical control system and three-axis linkage structure, the CNC glass work center enables flexible and precise movement of the cutter head, ensuring accurate positioning and consistent processing effect for all kinds of irregular furniture glass. The machine base, columns and beams are made of heavy cast iron, which enhances structural rigidity and shock resistance, guaranteeing long-term stable operation in industrial production workshops of glass factory.
The CNC glass machine adopts high-performance servo motor drive, matched with imported high-precision linear guide rails, sliders and ball screws, ensuring smooth operation, low processing error and high precision. The integrated CNC glass grinding machine and CNC glass polishing machine can achieve rough edging, fine edging and high-gloss polishing, making the surface of furniture glass smooth and burr-free, meeting the high-quality requirements of furniture glass processing.
Adhering to the concept of providing cost-effective glass processing machine for glass manufacture enterprises, our CNC glass machining center features a simplified structure, easy operation and compact design, suitable for both mass production and customized processing of furniture glass. It is the ideal core processing equipment for glass factory engaged in furniture glass deep processing, helping enterprises reduce production costs and improve product competitiveness.
Technical Parameter and configuration list
MODEL No. | ZXX-C2515 |
Machine Bed | Heavy heat treatment bed |
Internal of machine structure | Half Cover/Waterproof design |
Control System | QIXIN (ZNXU Special designed) |
Main Spindle | DIAM θ150 /100 Cooling Method: Water Cooling RPM:15000 |

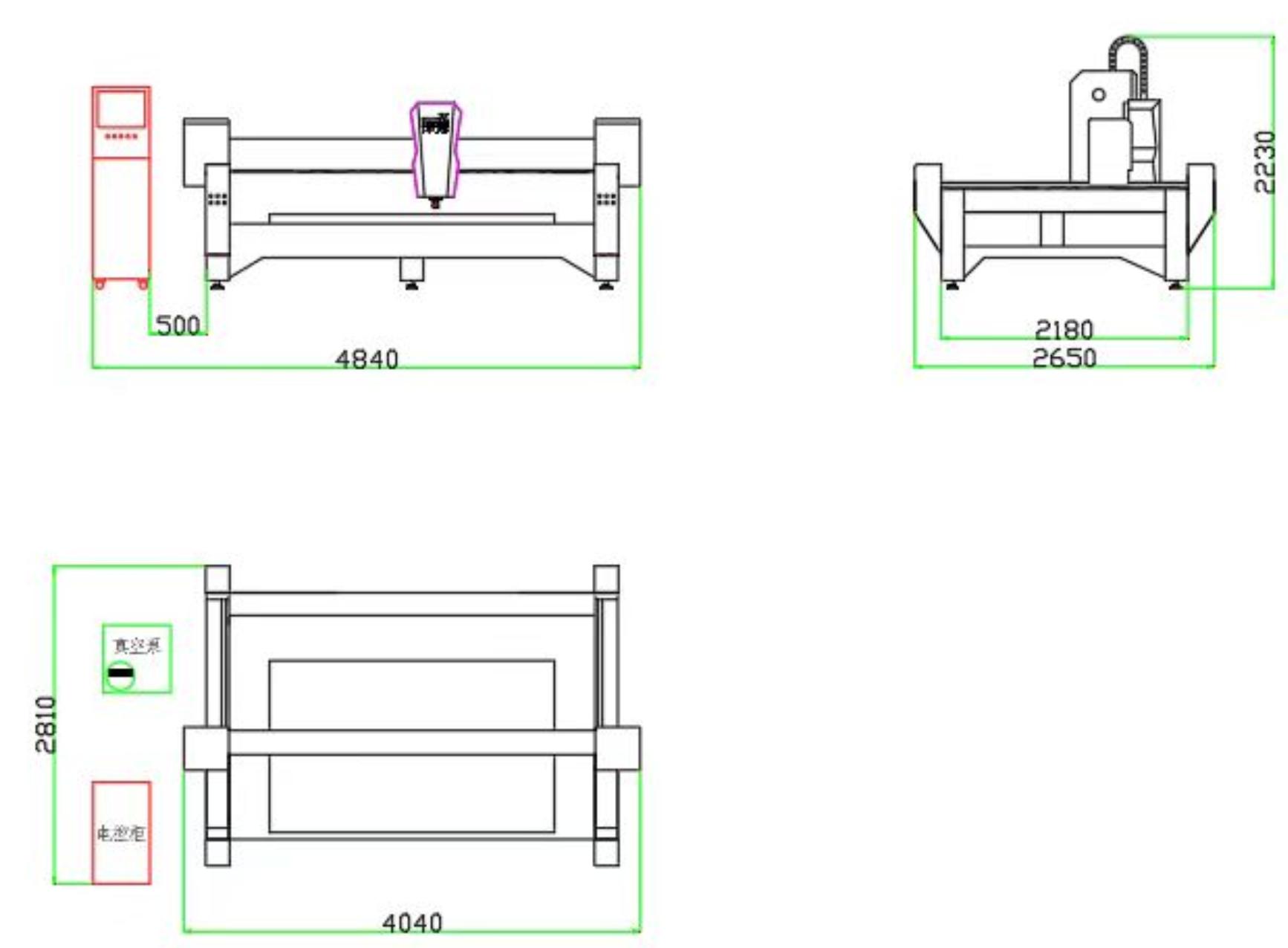

Machine Size | 4100*2650*2300MM |
Floor Space advice | 5000*4000MM |
N.W（kg) | 2600KG |
Table Size | 2500*1500MM |
Work Travel | 2500*1500*380MM |
Mini grinding size | 100*100mm |
Max grinding size ( wheel φ150） | 2500*1400MM |
Max cutting size | 2500*1500MM |
Speed | Grinder <12M/MIN, Polish <6M/MIN |
Cutting Speed | 300-500mm/min |
Table Material | Aluminium Plate （Before milling 25mm) |
Work table load weiht | 450kg |
Position Accuracy | ±0.02mm |
Repeated position accuracy | ±0.1mm |
Servo motor | DELTA |
TOTAL（KW) | 24kw |

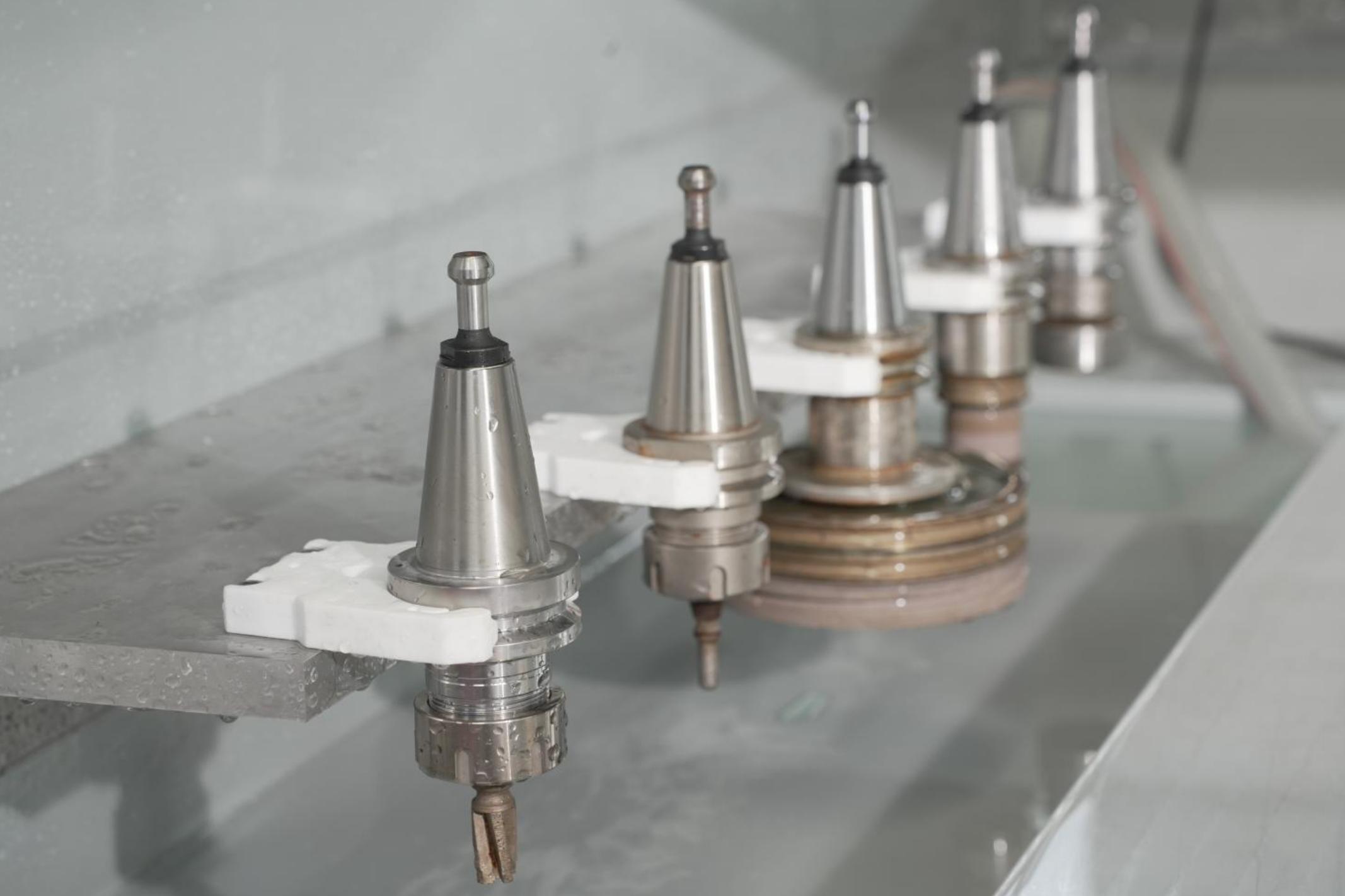

AUTOMATIC TOOL CHANGE

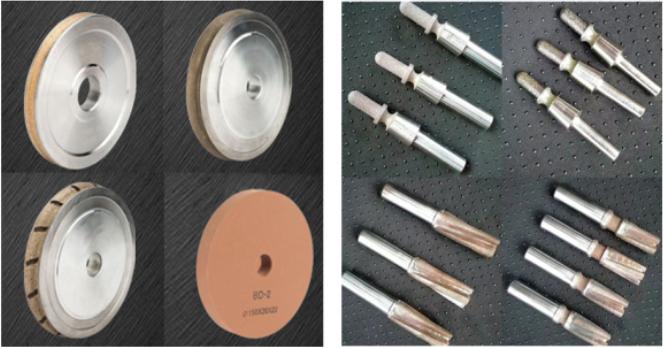

This machining center comes standard with an automatic tool magazine and an ATC (Automatic Tool Changer) system, capable of stably storing multiple tool specifications and supporting multi-process composite machining such as milling, cutting, grinding, chamfering, and polishing. The machine tool intelligently manages tool numbers and positions through a CNC system, ensuring fast and precise tool changes without any manual intervention.

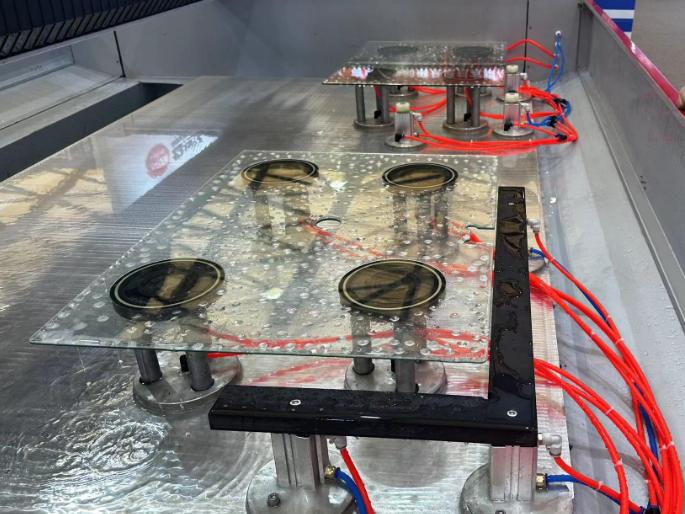

DOUBLE STATION PROCESSING
Two glass can be loaded at the same time. By this feature after the first glass processing the machine automatically reposition itself for second glass. Thanks to this feature time losses caused by glass loading is prevented and serial glass processing increased in production.
MULTIFUNCTION PROCESSING
With its multifunction glass processing feature our machine can do glass edging, milling, drilling and polishing automatically in one cycle for flat and shaped glasses. This feature is very useful for manufacturing of glass doors, furniture glasses, shower glass doors etc.
PROPORTIONAL HANDWHEEL

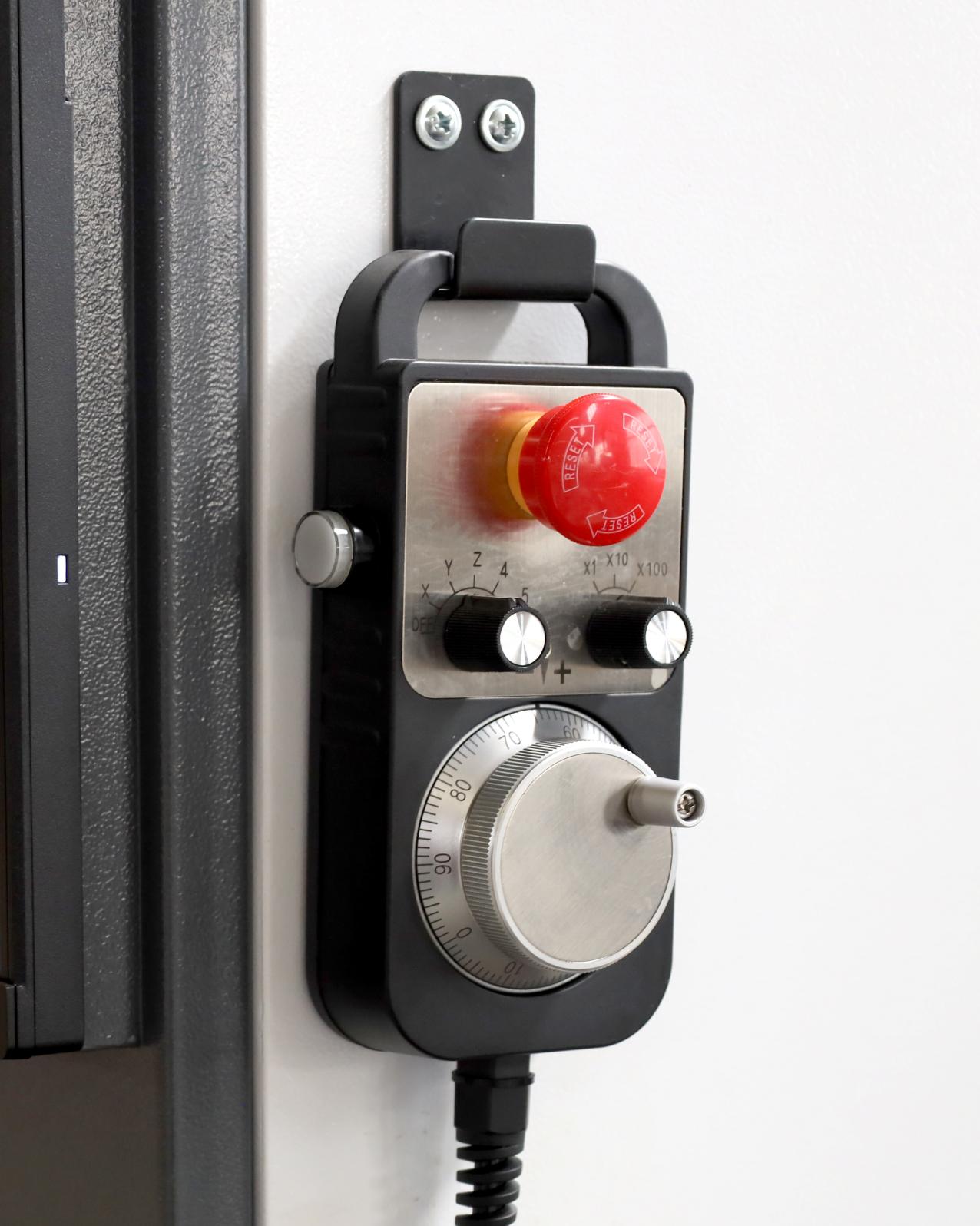

With its hand held unit that we have developed for our glass processing center the operator is able to use the machine through hand held unit easily with maximum comfort. Proportional and ergonomically designed handwheel is used for precise, fast reset and setup purposes.

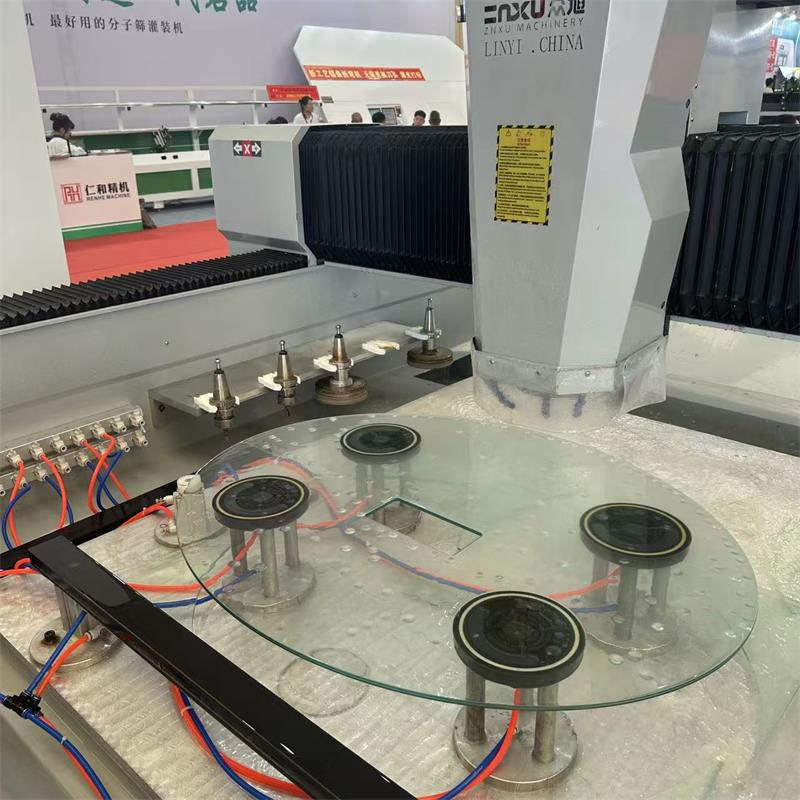

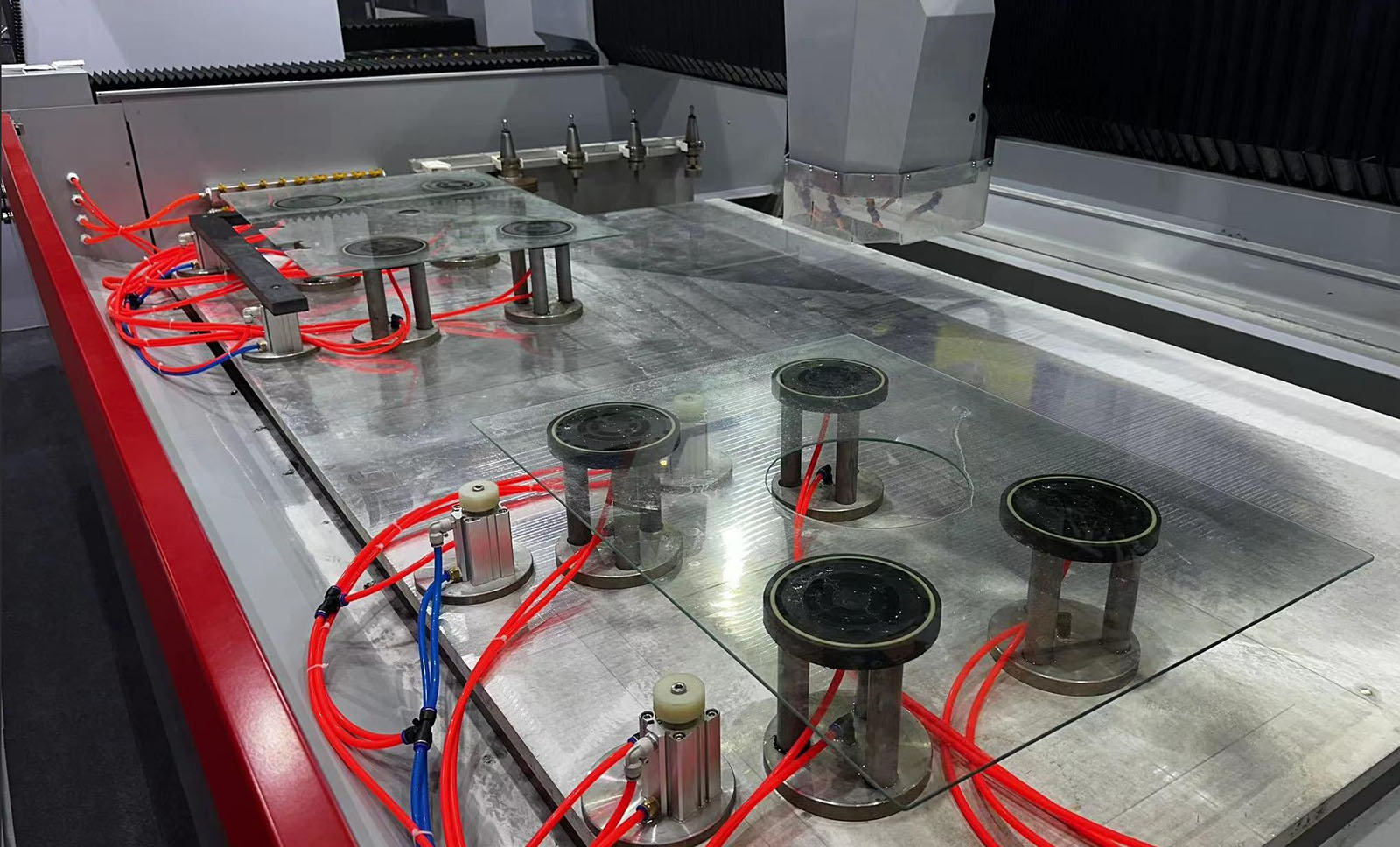

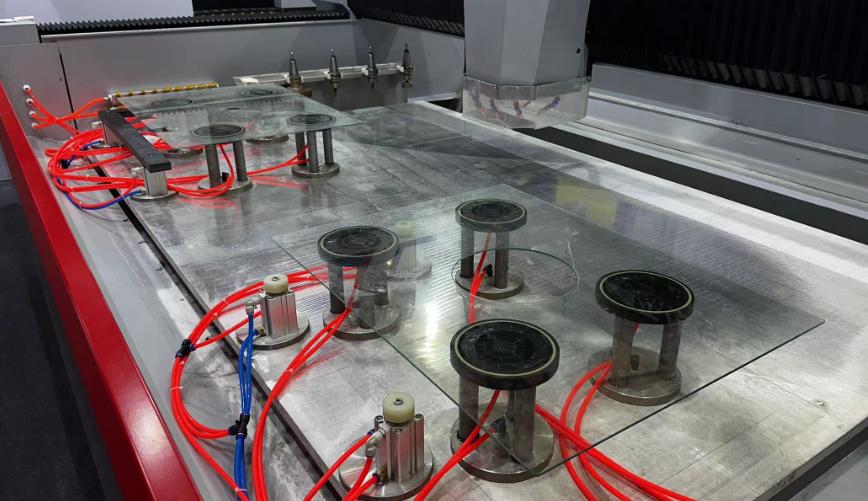

SUCTION CUPS SUPPORT SYSTEM

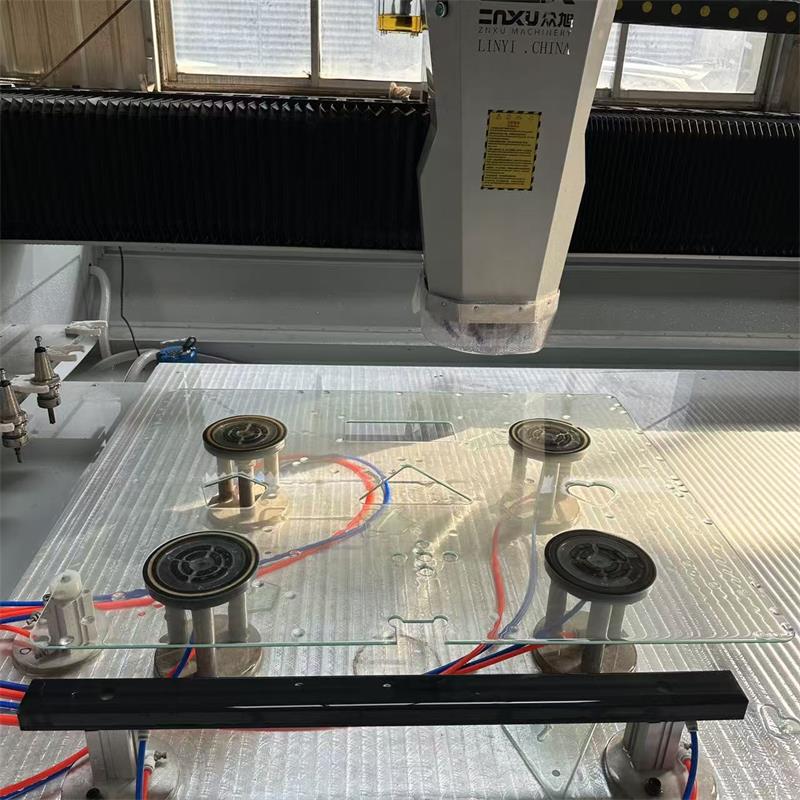

Holding the glass in glass processing is one of the important case and by knowing that very well we have designed strong suctions cups which has long life usage. With our strong suction cups technology we offer you maximum safety and the easiest way of glass processing with our glass processing center.
REMOTE ACCESS SYSTEM
Remote technical assistance system based on a set of software tools that allows authorized staff of our after sales services to manage maintenance or assistance tasks anywhere in the world quickly and efficiently. Access via the Internet is always done with the prior consent of the customer.
