Introduce:

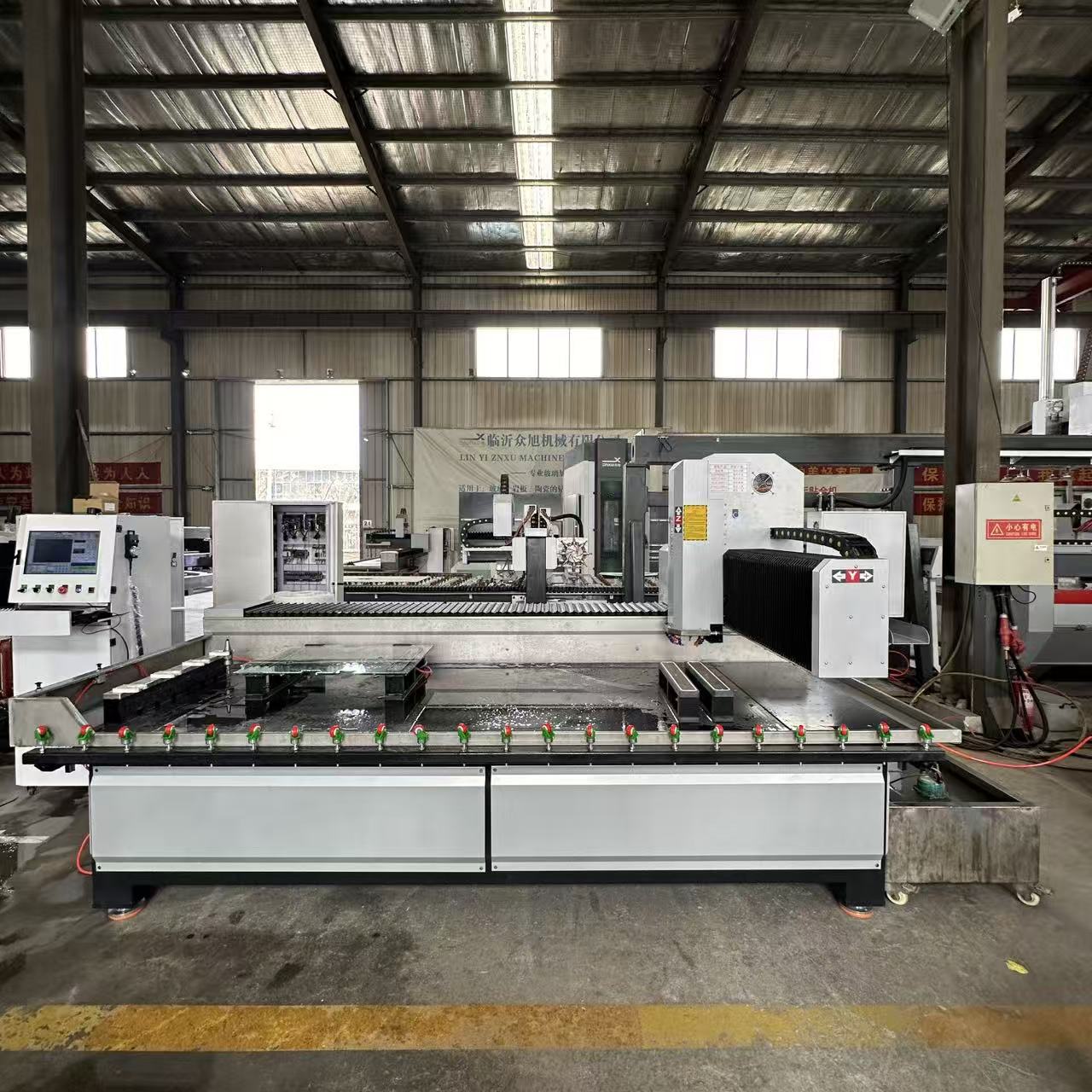

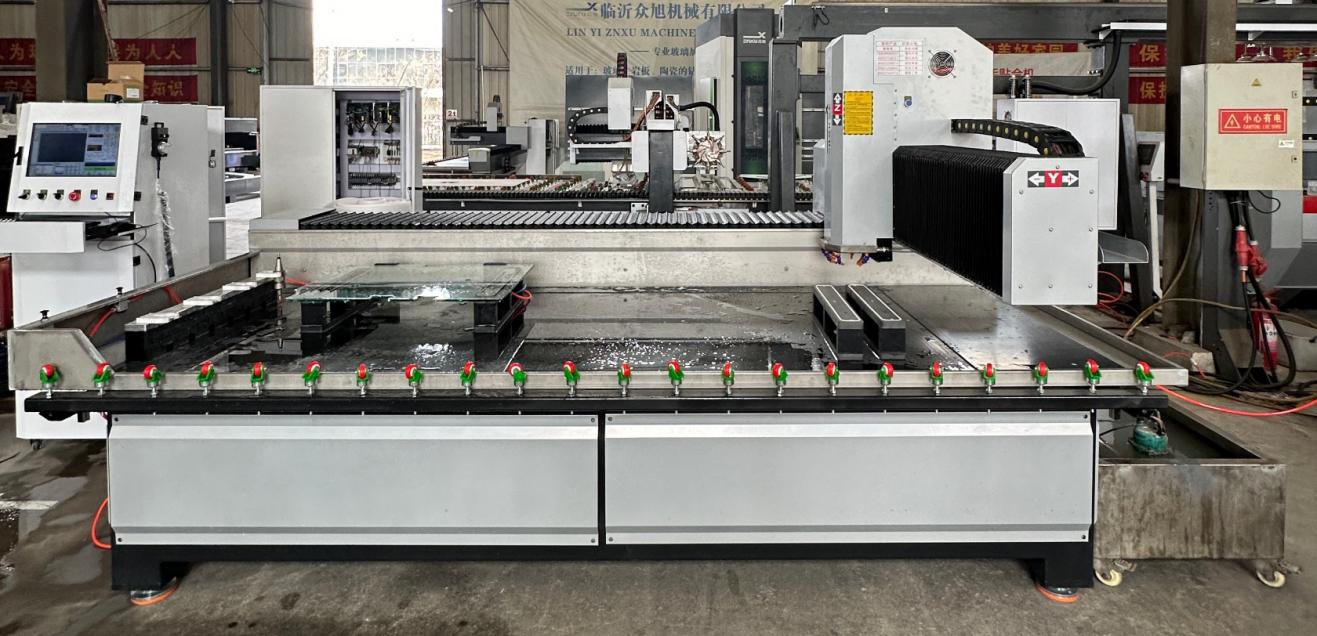

This is an upgraded glass milling machine, which adds an automatic tool changer function, enabling quick switching between different milling cutters.
This glass milling machine is mainly used for glass hole milling and notch cutting（cutouts makeing)
As a cost-effective glass processing center, it features low investment cost and simple operation.
With an open mechanical structure, it has no limit on the processing glass size.
It is ideal for small glass processing factories and tempering plants that do not want to invest heavily in dedicated hole milling and notch cutting equipment.
It is widely applicable for processing lock holes of sliding door glass, hinge notches of shower room glass, sink holes of cabinet glass countertops and other similar processing scenarios.
Main Techincal Parameter：

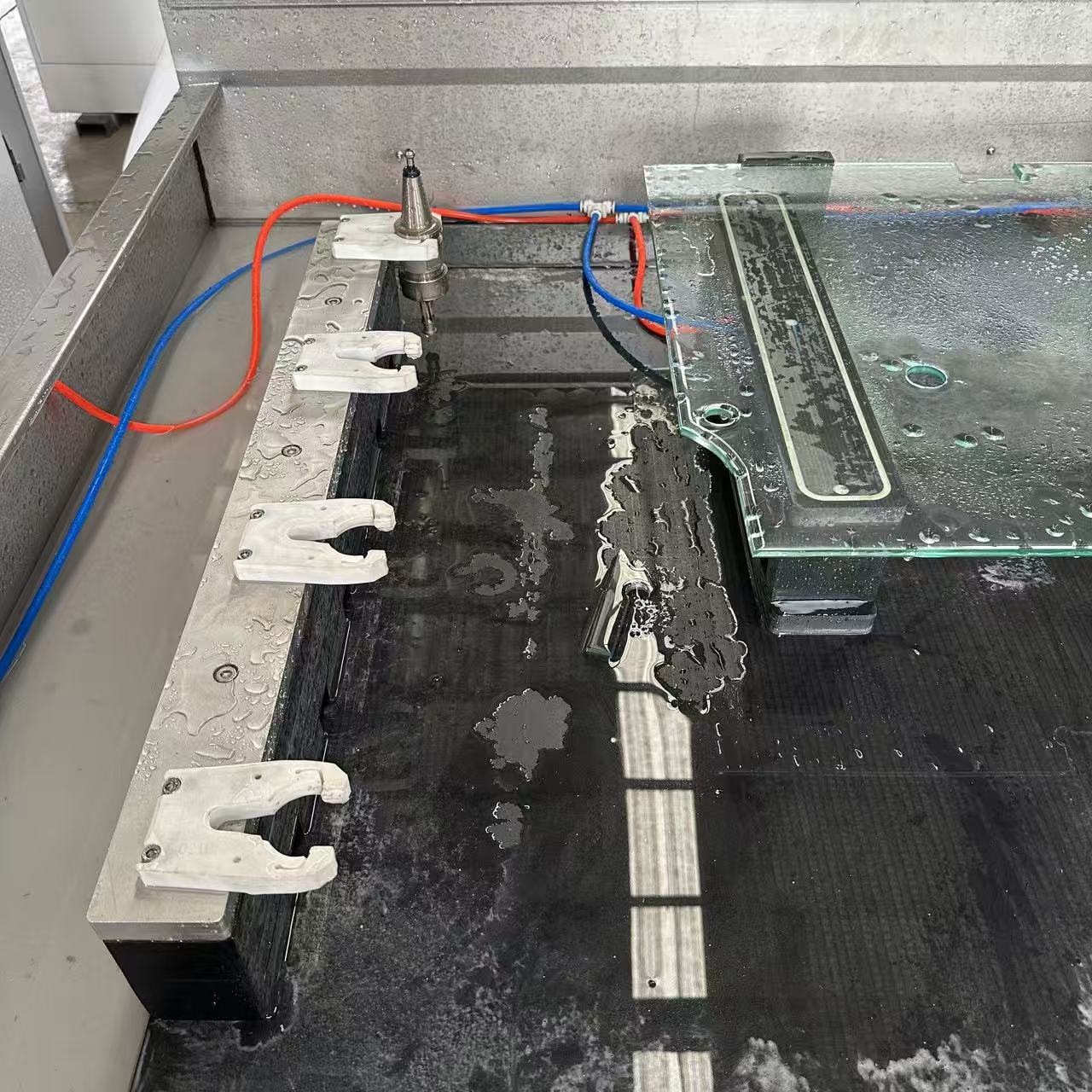

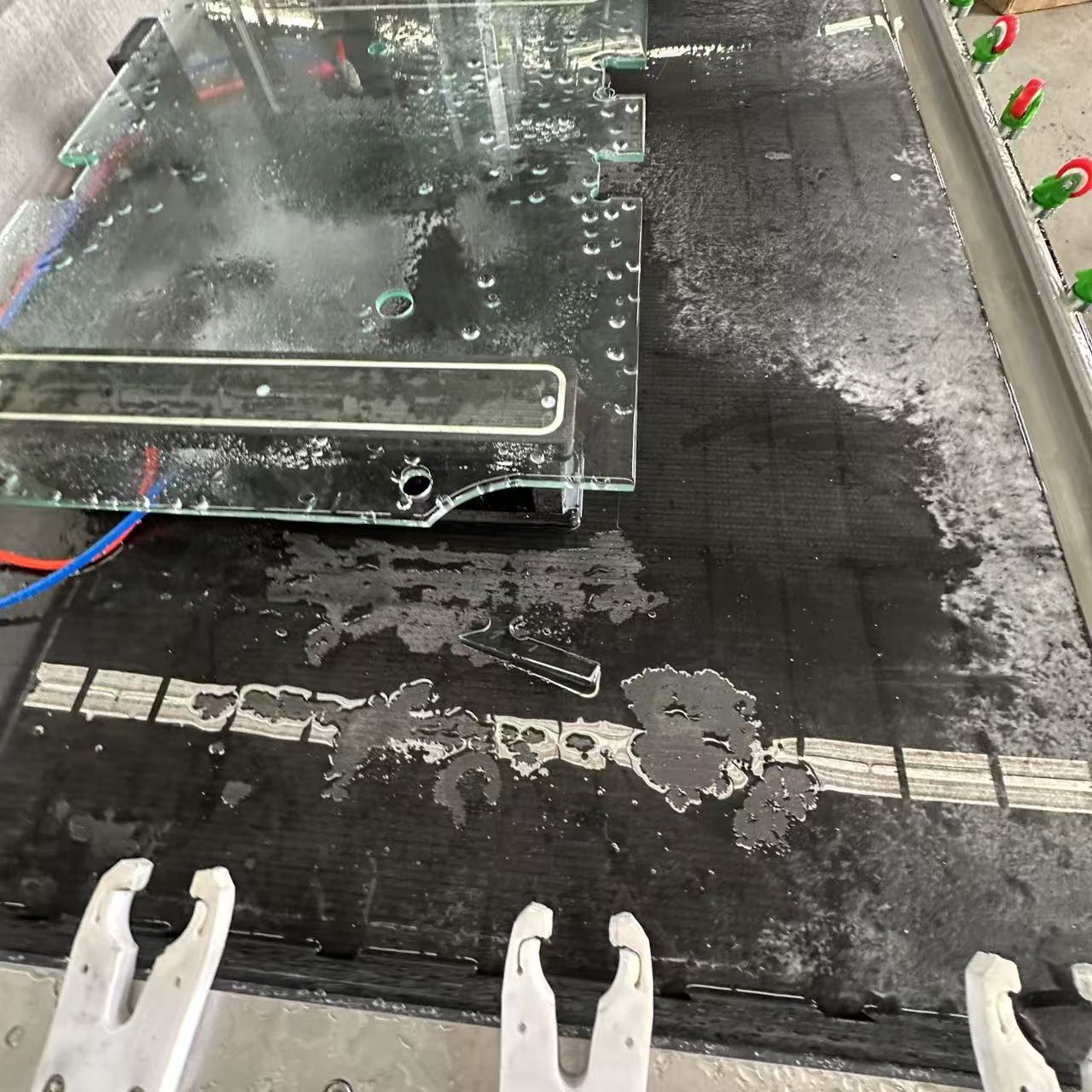

Automatic tool change - TOOL Magzine: 3 pcs
Machine Size：4470X1900X2000mmmm
PKG SIZE: 3550*2000*2200MM
Glass can be putted within the table ( no water leaking): 1000*2850 mm
Glass can be processed within the table ( no water leaking): 1000*2200 mm

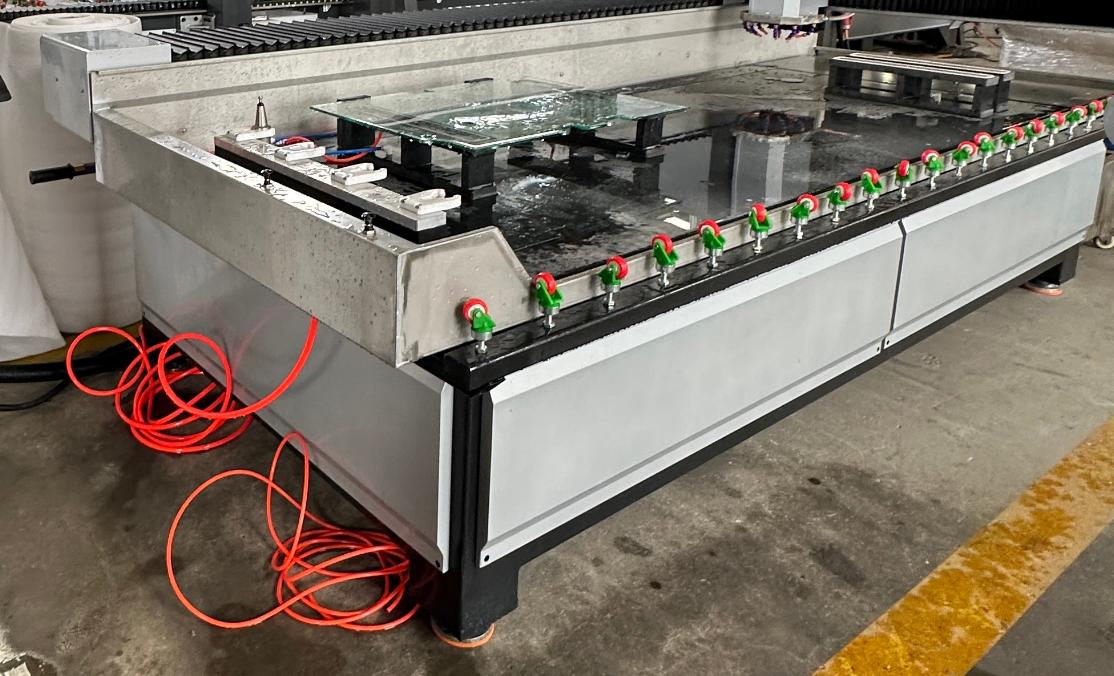

Process glass size: no limited ( three sides opened table, no limited)
Resin Table Size: 1100*3050mm (includes the tool magazine)
Actual size of motor moving: 1000*2200mm
Stroke X Axis: 1000mm
Stroke Y Axis: 2200mm
Stroke Z Axis: 200mm
Main Spindle (JST) : 7.5kw
RPM OF Main spindle: 24000RPM/MIN
SERVO Motor -WEIDE : 0.75*3
Total Power：13.6kw, 3 phase
Total Weight：1500kg
Speed of Milling：0-1 m/min (1cutouts/min)
Accuracy: ±0.2mm
Thickness: 3-19mm
Volt. / HZ：~380v/50hz, 3 phase ( can be different by adding the transformer)
Water proof design：half-shielded waterproof structure
Other construction you might want to know:

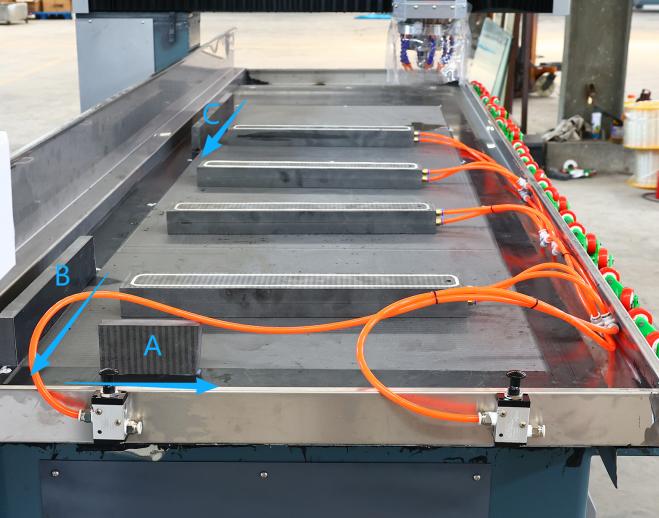

1. About the location: Right-angle positioning with ruler is simple and quick.

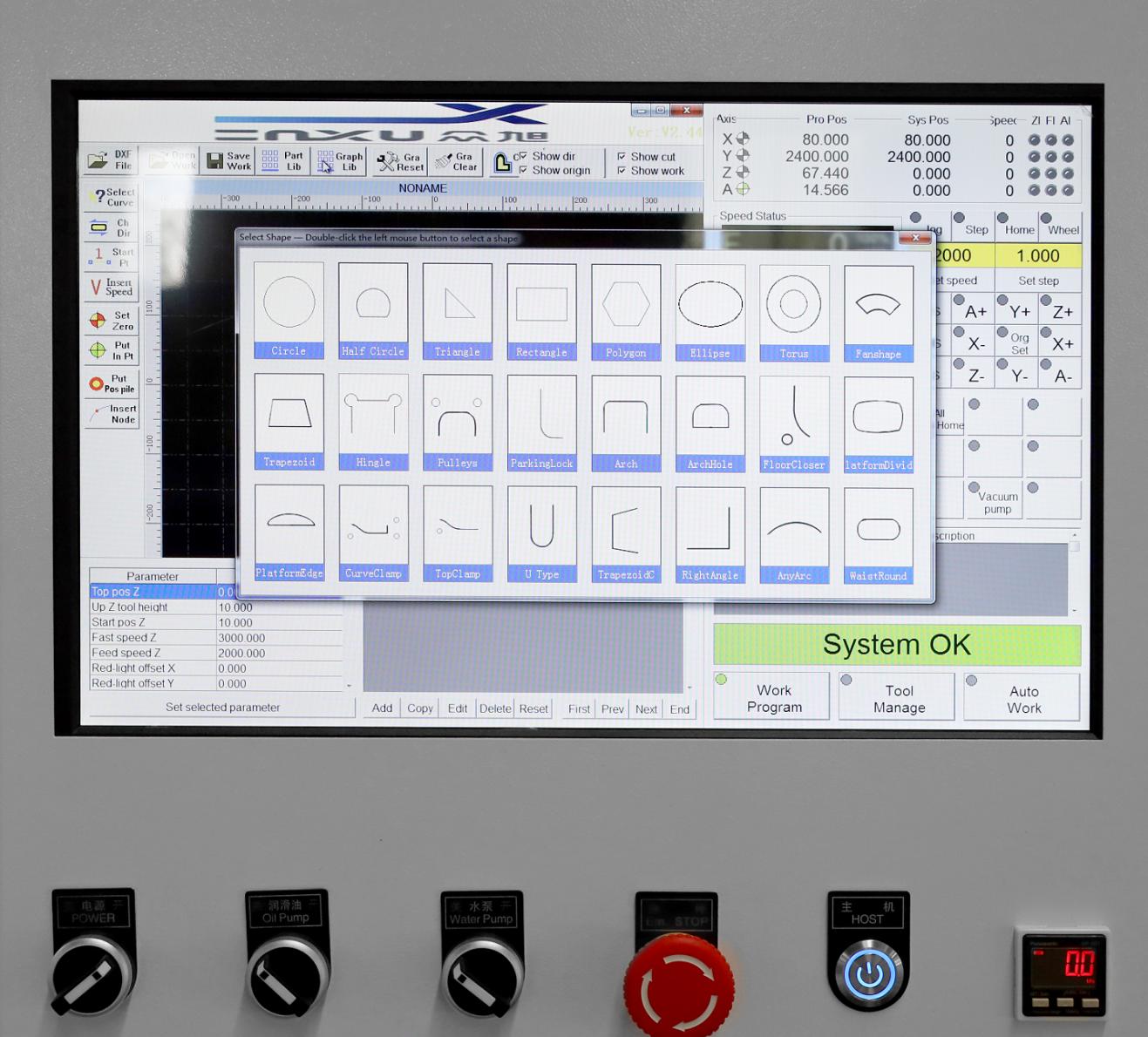

2. ABOUT DESIGN: The machine comes with a built-in image library and also supports CAD drawing and DXF file import.

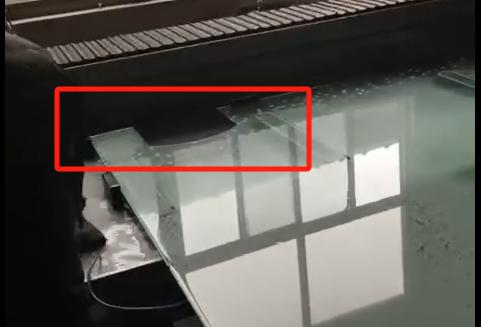

3. Glass working dimension: the machine has 3 opened table, no size limit. Motor running size is 1000*2500mm, even glass is larger, it can be processed, because cutouts can be processed the inner side of table - see video attached pls.

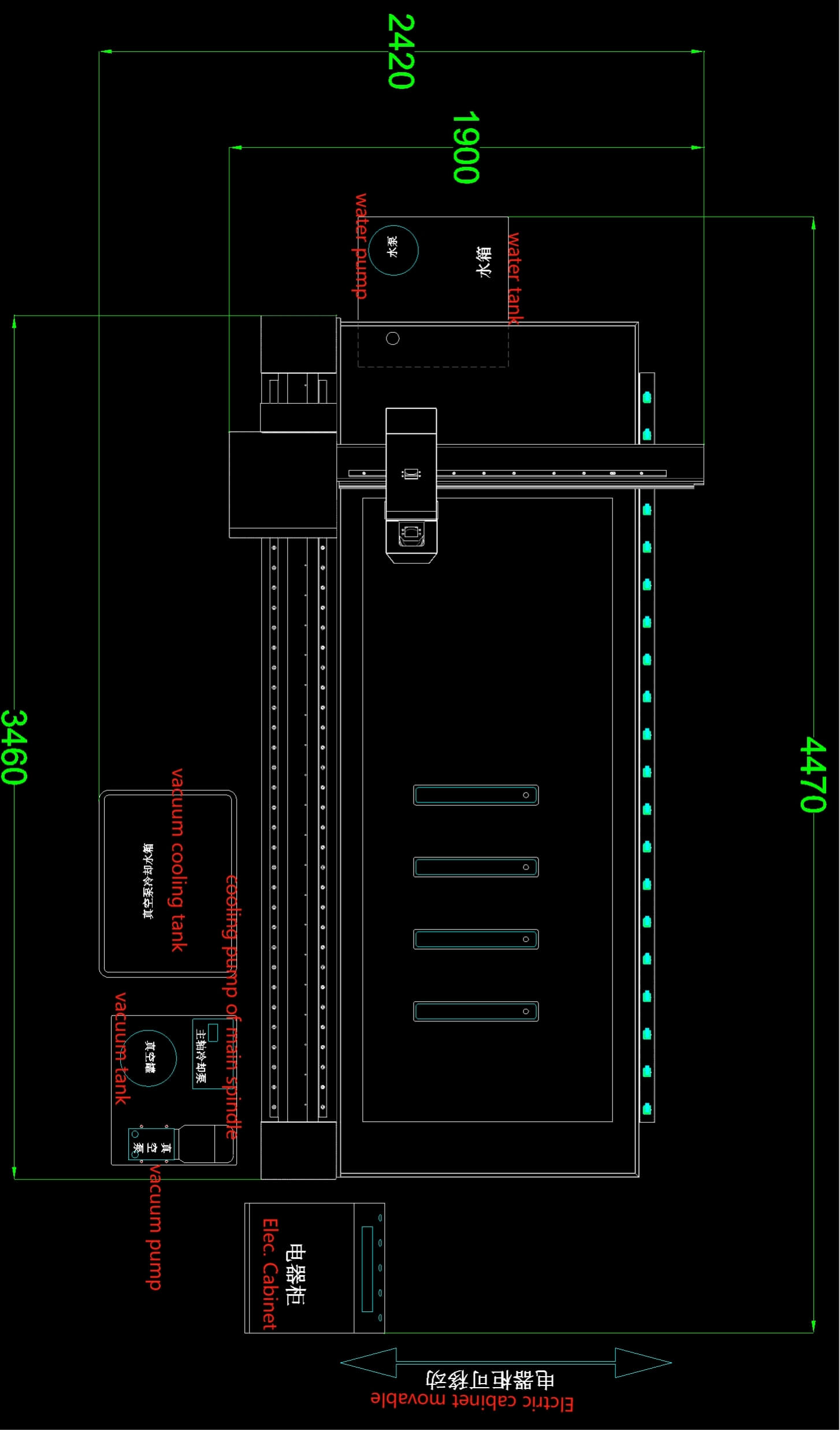

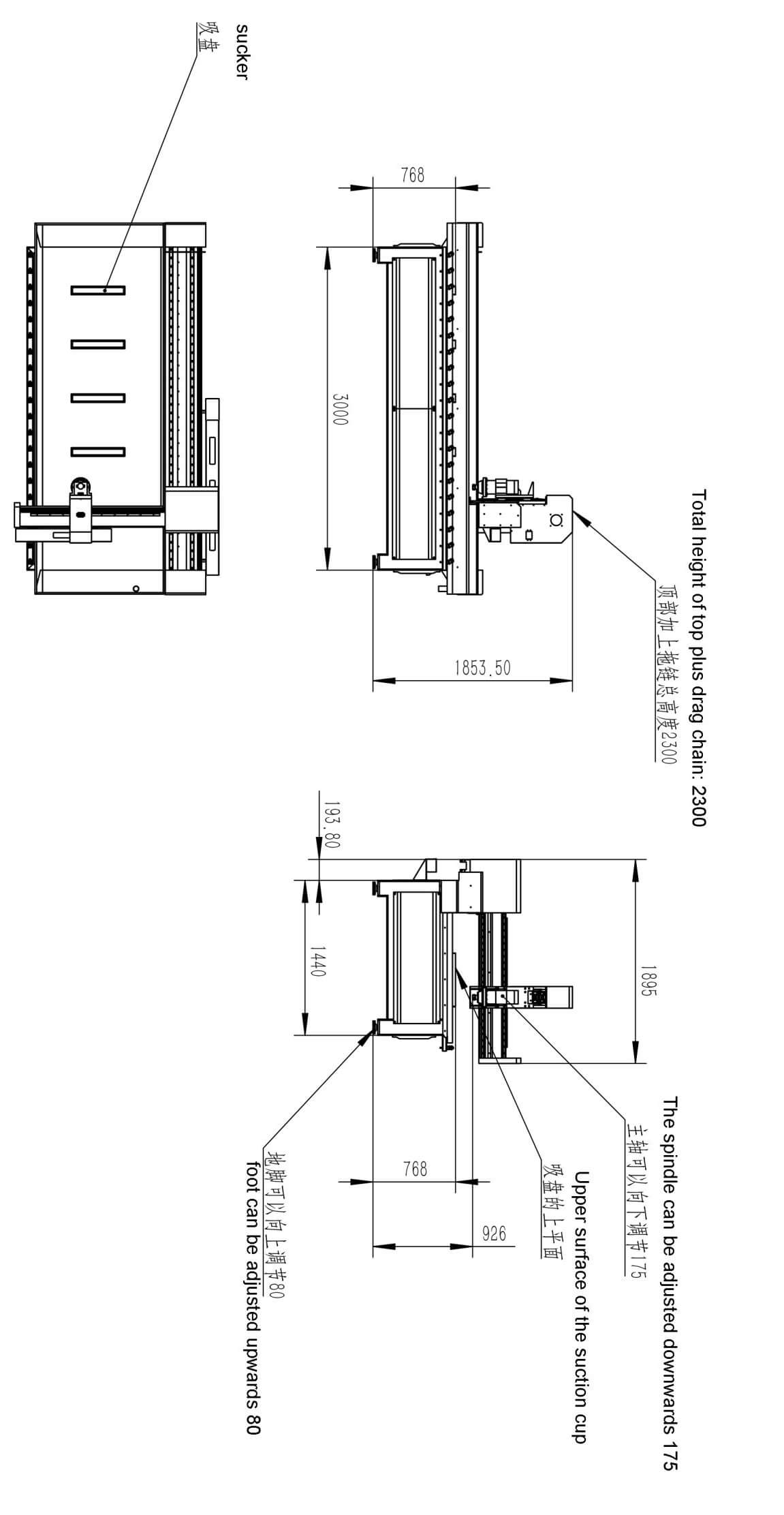

4. Layout drawing

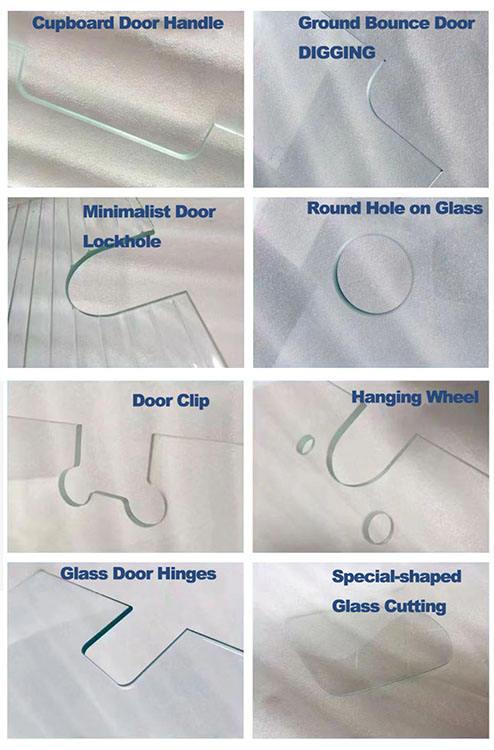

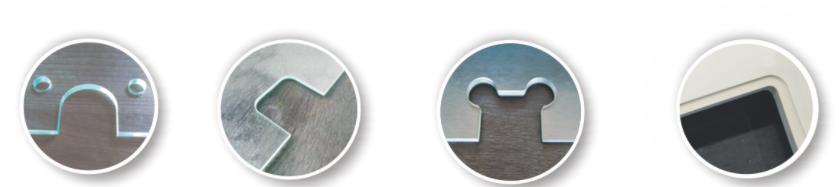

5. SAMPLE PICTURE
Let me tell you why choose it:
For slides door customers , if they want to make the cutouts like this, 1st, by hand, broken easier when tempering, and it looks very rough and very dangerous. 2nd waterjet machine and cnc machinning center,cost is very expensive!!!
Therefore, the model ZXX-E1025 will be the best choice for the slides door customers!!!
