Fabricant de machines de traitement de verre professionnel depuis 2014！ Même qualité, meilleur prix! Même prix, meilleure qualité!

E0825 rock slab door panel handle milling cabinet glass rock slab countertop opening preferred machine 1

E0825 rock slab door panel handle milling cabinet glass rock slab countertop opening preferred machine 2

E0825 rock slab door panel handle milling cabinet glass rock slab countertop opening preferred machine 3

E0825 rock slab door panel handle milling cabinet glass rock slab countertop opening preferred machine 4

E0825 rock slab door panel handle milling cabinet glass rock slab countertop opening preferred machine 5

E0825 rock slab door panel handle milling cabinet glass rock slab countertop opening preferred machine 6

E0825 rock slab door panel handle milling cabinet glass rock slab countertop opening preferred machine 7

E0825 rock slab door panel handle milling cabinet glass rock slab countertop opening preferred machine 8

E0825 rock slab door panel handle milling cabinet glass rock slab countertop opening preferred machine 9

E0825 rock slab door panel handle milling cabinet glass rock slab countertop opening preferred machine 10

E0825 rock slab door panel handle milling cabinet glass rock slab countertop opening preferred machine 11

E0825 rock slab door panel handle milling cabinet glass rock slab countertop opening preferred machine

rock slab door panel handle milling cabinet glass rock slab countertop opening preferred machine

Main Techincal Parameter

Machine Size	350015002200mm
Head stroke size	2500*800mm
Process glass size	no limited ( three sides opened table, no limited)
Table Size	3400*1000mm
Stroke X Axis	800mm
Stroke Y Axis	2500mm
Stroke Y Axis	200mm
Main Spindle (HD / SOHO)	7.5kw
RPM OF Main spindle	24000RPM/MIN
SERVO Motor - Yichuan	0.75*3
Total Power	13.6kw, 3 phase
Total Weight	1600kg
Speed of Milling	0-1 m/min (1cutouts/min)
Accuracy	±0.2mm
Thickness	3-19mm
Volt. / HZ	~380v/50hz, 3 phase ( can be as per customized)
Water proof design	half-shielded waterproof structure

Let me tell you why choose it

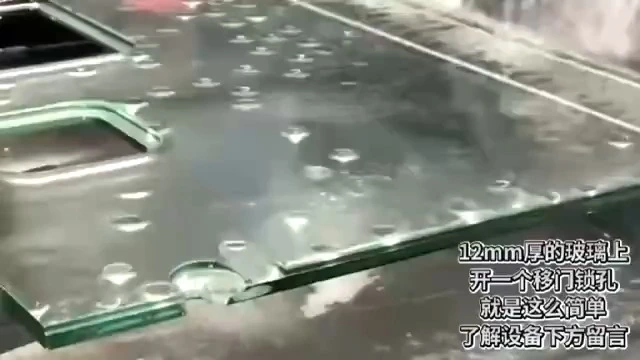

For slides door customers , if they want to make the cutouts like this, 1st, by hand, broken easier when tempering, and it looks very rough and very dangerous. 2nd waterjet machine and cnc machinning center, 40000usd around, too expensive!!! Therefore, the model ZXX-E0825 will be the best choice for the slides door customers!!!
