CNC MILLING MACHINE For Glass Shower room & Glass Sliding Door Clip Etc
This model is a new type of glass and slab milling equipment developed by our company. It adopts cantilevered three-axis three-wheel drive structure design. The bed is welded with high-quality steel and processed after quenching. The transmission part is driven by H-class precision linear guide and pure servo motor, which guarantees the accuracy and stability of the machine to the utmost extent. The working spindle adopts a high-power high-speed motor.
The advantages of fast milling speed, small radial runout, and high processing accuracy; the waterproof part of the machine adopts a half-shielded waterproof structure, and an open working platform on three sides is convenient for the operator to load and unload the film, which minimizes the difficulty of operation and the work intensity of the workers. Suitable for minimalist style cabinets and closet glass and slate door handle milling, cabinet glass and slate countertops sink stove hole milling and opening, glass shower room, glass sliding door clip, hinge hole, Milling type of keyhole.

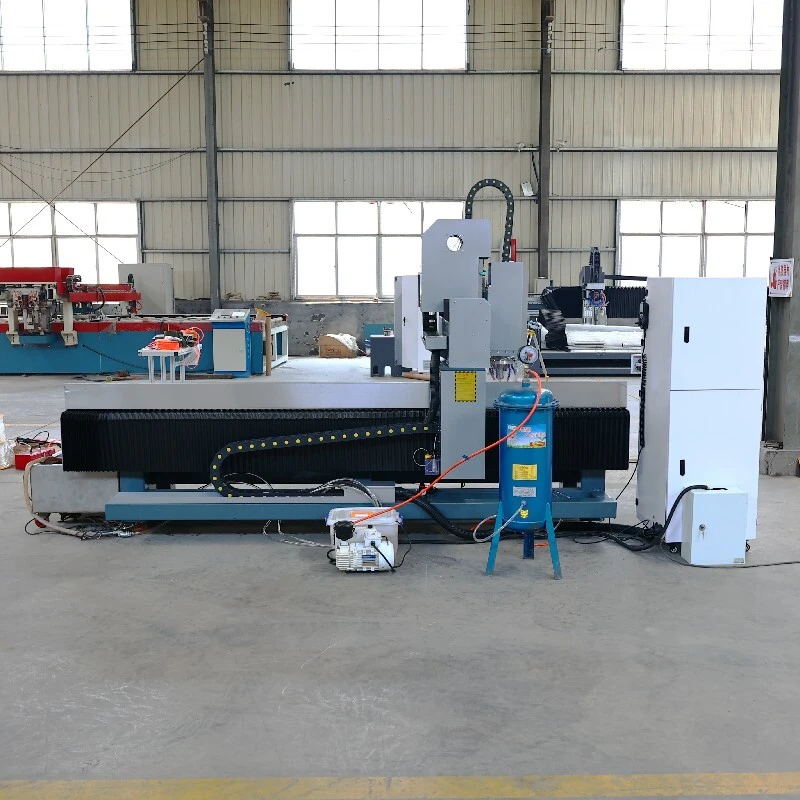

ZXX-E00825CNC Glass Milling Machine (cutouts making)
ZXX-E0825 CNC glass milling machine for door hinges, cutouts etc.
Main Techincal Parameter
|
Machine Size |
3500*1500*2200mm |
|
Head stroke size |
2500*800mm |
|
Process glass size |
no limited ( three sides opened table, no limited) |
|
Table Size |
3400*1000mm |
|
Stroke X Axis |
800mm |
|
Stroke Y Axis |
2500mm |
|
Stroke Y Axis |
200mm |
|
Main Spindle (HD / SOHO) |
7.5kw |
|
RPM OF Main spindle |
24000RPM/MIN |
|
SERVO Motor - Yichuan |
0.75*3 |
|
Total Power |
13.6kw, 3 phase |
|
Total Weight |
1600kg |
|
Speed of Milling |
0-1 m/min (1cutouts/min) |
|
Accuracy |
±0.2mm |
|
Thickness |
3-19mm |
|
Volt. / HZ |
~380v/50hz, 3 phase ( can be as per customized) |
|
Water proof design |
half-shielded waterproof structure |
Let me tell you why choose it
For slides door customers , if they want to make the cutouts like this, 1st, by hand, broken easier when tempering, and it looks very rough and very dangerous. 2nd waterjet machine and cnc machinning center, 40000usd around, too expensive!!! Therefore, the model ZXX-E0825 will be the best choice for the slides door customers!!!
Construction List
|
Commodity |
Model No. |
QTY |
REMARK |
|
Host, electrical cabinet |
|
1 set |
CHINT |
|
Computer, mouse, hand wheel |
|
1 set |
|
|
Vacuum pump assembly |
|
1 full set |
|
|
Nameplate |
ER32 |
1pc |
|
|
Er wrench |
34-36 |
1pc |
|
|
ER Holder |
ER32-1/2 |
1pc |
|
|
ER Holder |
Er32-12mm |
1pc |
|
|
ER Holder |
ER32-6mm |
1pc |
|
|
Cutter tool |
Alloy milling cutter |
1pc |
|
|
Cutter tool |
Alloy combination cutter |
1pcs |
|
|
Cutter tool |
Electroplating cutter |
4pcs |
|
|
Cutter tool |
Engraving cutter ф6 |
1pc |
|
|
Suction cup |
customized |
1 set |
4pcs |
|
Location Ruler |
Location bar |
2pcs |
|
|
Small water pump |
Used for main spindle |
1pc |
Plastic |
|
Small water tank |
Cooling for main spindle |
1pc |
Plastic |
|
Large water tank |
Used for Water pump &vacuum pump |
2pcs |
Stainless steel |
|
550W water pump |
Single phase |
1 |
With tape connection |
|
Water pump 25 water pipe |
Wire / plastic tube |
1.5M |
|
|
Water pipe conversion assembly |
|
1set |
|
|
Tube Clip |
ф25 |
2 pcs |
|
|
Air tube |
Ф 12/16 |
Each 2M |
|
|
Air tube connector |
8MM -Three-way |
10 pc |
|
|
Air tube connector |
12 to 8-Three-way |
1 pc |
ф8 |
|
Spare strip |
6# |
2M |
|
|
Air tube |
8mm |
20M |
|
|
Hexagon wrench |
3#----8# |
1set |
|
|
Combined screwdriver |
|
1set |
|
|
Universal nozzle |
|
4 pcs |
|
|
Raw material belt |
|
2 ROLLER |
|
|
AB glue |
|
1BOX |
|
|
Structural glue |
|
1pc |
|
|
Other: |
|
|
|
|
Manual |
|
1set |
|
|
Certificate |
|
1pc |
|
|
X Y Z Identification |
|
Each 1 pc |
|
|
Warning sign |
|
1pc |
|
|
Patent warning post |
|
1pc |
|
