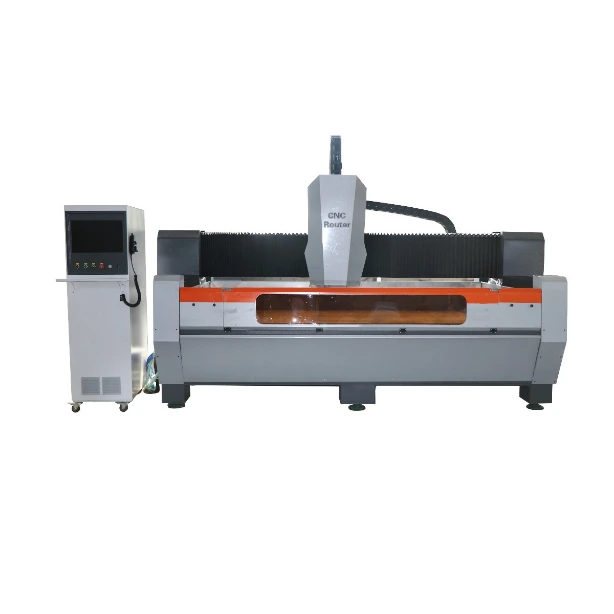

Cnc glass edging and polishing machine
Feature:
* 3 axes
* Fully automated glass processing center
* Rough edging, fine edging, polishing
* Automatic spindle cooling
* Automatic central lubricating system
* Automatic tool calibration system
* Compact and space effective design
* Extremely robust structural design
The ZNXU CNC Glass processing center is designed for straight and irregular shape of glass edges grinding and polishing, both outside edges and inner side edges grinding and polishing.
Main Techincal Parameter
|
MODEL No. |
ZXX-C2010 |
ZXX-C2515 |
ZXX-C3015 |
ZXX-C4020 |
|
Machine Bed |
Heavy heat treatment bed |
|||
|
Internal Of Machine Structure |
Half Cover/Waterproof design, 304 stainless steel outer cover and inner cover |
|||
|
Control System |
QIXIN SYSTEM (ZNXU Special designed) |
|||
|
Main Spindle |
DIAM θ150 / θ100 |
|||
|
Machine Size |
3600*2150*2300MM |
4100*2650*2300MM |
4600*3150*2300MM |
5600*3650*2300MM |
|
PKG. SIZE |
3700*2200*2200MM |
4100*2250*2200MM |
4600*2250*2200MM |
5600*2600*2200MM |
|
N.W（kg) |
2500KG |
2750KG |
3450KG |
4000KG |
|
Table Size |
2000*1000MM |
2500*1500MM |
3000*1500MM |
4000*2000MM |
|
Work Travel |
2000*1000*380MM |
2500*1500*380MM |
3000*1500*380MM |
4000*2000*380MM |
|
Mini Grinding Size |
100*100mm ( FOR SMALLER SIZE CAN ALSO BE DONE BY CUSTOMIZED SUCKER) |
|||
|
Max Grinding Size ( wheel φ100） |
1900*900MM |
2400*1400MM |
2900*1400MM |
3900*1900MM |
|
Speed |
Grinder <15M/MIN, Polish <6M/MIN |
|||
|
Table Material |
Aluminium Plate AFTER CNC MILLING |
|||
|
Position Accuracy |
0.02mm |
|||
|
Repeated Position Accuracy |
0.1mm |
|||
|
SERVO DRIVE |
DELT |
|||
|
ELECTRIC |
SIEMENS |
|||
|
LIMIT SWITCH |
OMRON |
|||
|
VFD |
SINEE |
|||
|
POWER REQUEST |
AC/380V/50HZ/24KW, 3Phase |
|||
Product introduction
The PC based numerical control work center is dedicated to the glass processing. Cutter heads can be moved left and right,up and down through the three-axis linkage structure controlled.
The base, the columns & beams are made of Heavy iron to ensure the stability of the machine for long-term operation.
The drive adopts servo motor, and the sliding adopts imported high-precision linear guide rail to ensure running, slider and ball screw, which ensures the accuracy requirement during operation.
The design concept of this machine is to provide cost-effective equipment for glass deep processing enterprises, the structure is as simple as possible, more functions are combined as much as possible, and the operation is as simple as possible.
Product advantages
DOUBLE STATION PROCESSING:Two glass can be loaded at the same time. By this feature after the first glass processing the machine automatically reposition itself for second glass. Thanks to this feature time losses caused by glass loading is prevented and serial glass processing increased in production.
PROPORTIONAL HANDWHEEL: With its hand held unit that we have developed for our glass processing center the operator is able to use the machine through hand held unit easily with maximum comfort. Proportional and ergonomically designed handwheel is used for precise, fast reset and setup purposes.
SUCTION CUPS SUPPORT SYSTEM: Holding the glass in glass processing is one of the important case and by knowing that very well we have designed strong suctions cups which has long life usage. With our strong suction cups technology we offer you maximum safety and the easiest way of glass processing with our glass processing center.
REMOTE ACCESS SYSTEM: Remote technical assistance system based on a set of software tools that allows authorized staff of our after sales services to manage maintenance or assistance tasks anywhere in the world quickly and efficiently. Access via the Internet is always done with the prior consent of the customer.
